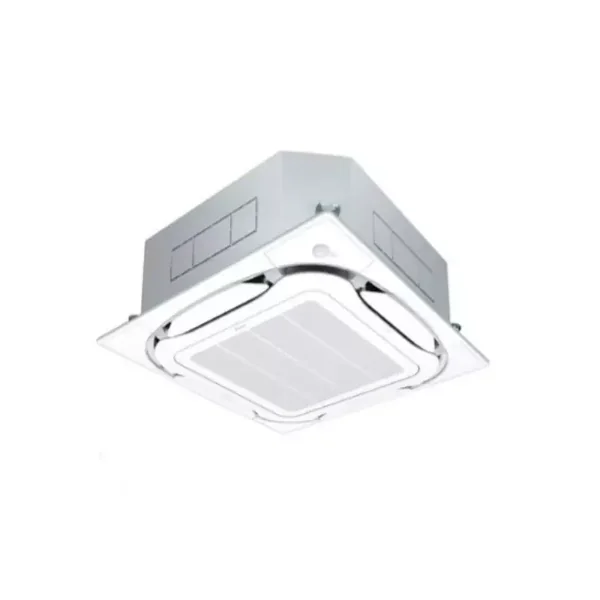

Daikin Ceiling Cassette Air Conditioner 42000BTU Inverter with Drain Pump Mechanism, R32 FCVFQ125AV16/RZVFQ125AV16

Overview

The Daikin Ceiling Cassette Air Conditioner (42000BTU, Inverter, R32) sets the standard for commercial and large residential spaces with its 360° uniform airflow, ensuring all-around comfort. It combines advanced features like a Silver ION antibacterial system, a built-in drain pump, and energy monitoring for efficient, clean, and reliable climate control.

Key Features

• 360° Uniform Airflow for consistent cooling/heating throughout the room.
• Inverter Technology for energy efficiency and precise temperature control.
• Drain Pump Mechanism enables efficient condensate drainage, ideal for long piping.
• Silver ION Antibacterial Drain Pan & Fan prevents bacteria, mould, odours, and clogging.
• Individual Air Flow Control allows adjustment of each air discharge outlet.
• Night Quiet Operation automatically reduces noise during nighttime hours.
• Swing Pattern Selection (Standard, Draft Prevention, Ceiling Soiling Prevention).
• Energy Consumption Monitoring displays past usage (daily, weekly, yearly).
• Auto Restart function resumes previous settings after a power outage.
• D III Net Compatible for centralized control without an optional adaptor.
• Low Gas Pressure Detection for system safety.
• Fresh Air Intake Kit compatible (optional).

Specifications

• Brand: Daikin
• Model: FCVFQ125AV16 / RZVFQ125AV16
• Type: Ceiling Cassette Air Conditioner
• Cooling Capacity: 42000 BTU (12.5 kW Rated)
• Capacity Range (Min~Max): 5.7 kW ~ 14.0 kW
• Compressor: Inverter (Swing Compressor, 1 Nos.)
• Refrigerant: R-32
• Rated Power Input: 4600 Watts
• ISEER: 3.66 Wh/Wh
• Annual Power Consumption: 2652.48 kWh
• BEE Star Rating: 3-Star
• Operating Range (Indoor/Outdoor): 19°C~35°C / 19°C~50°C
• Power Supply: 230V / 50Hz / 1 Phase
• Indoor Unit Size (HxWxD): 298 x 840 x 840 mm (Casing)
• Indoor Unit Weight: 25 kg
• Panel Size (HxWxD): 50 x 950 x 950 mm
• Panel Weight: 5.5 kg
• Outdoor Unit Size (HxWxD): 990 x 940 x 320 mm
• Outdoor Unit Weight: 68 kg / 62 kg
