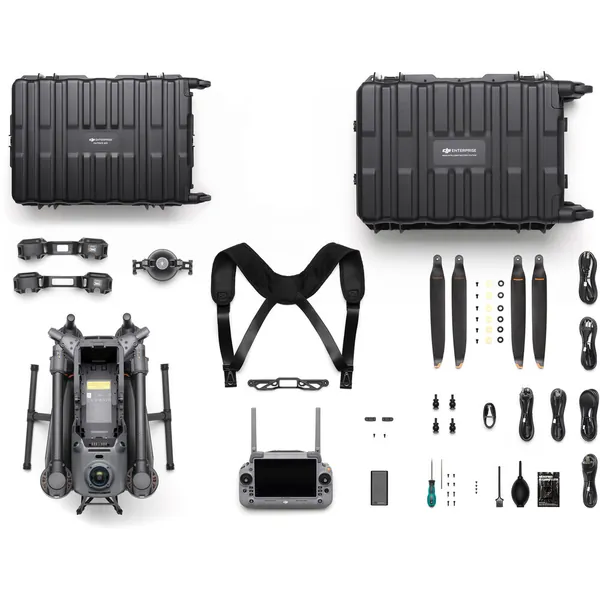

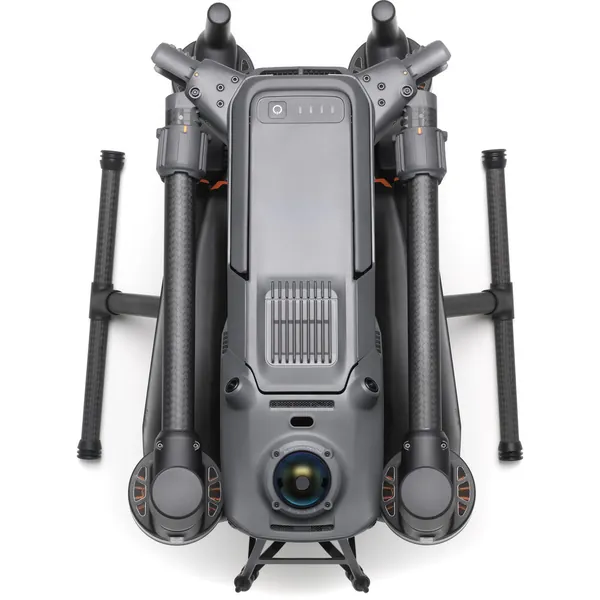

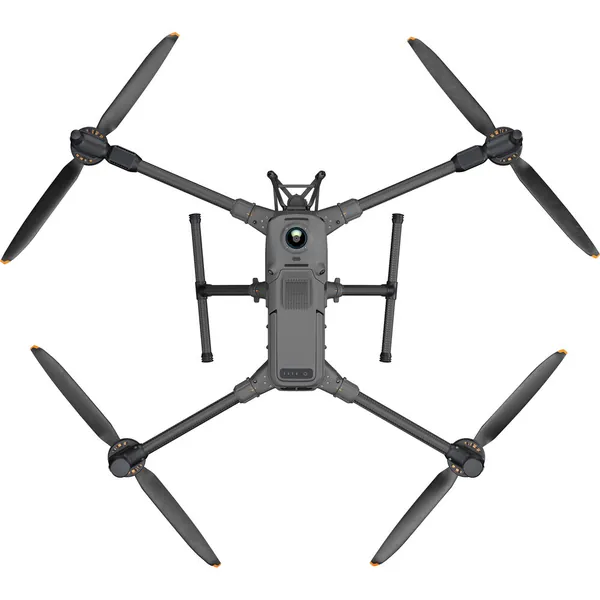

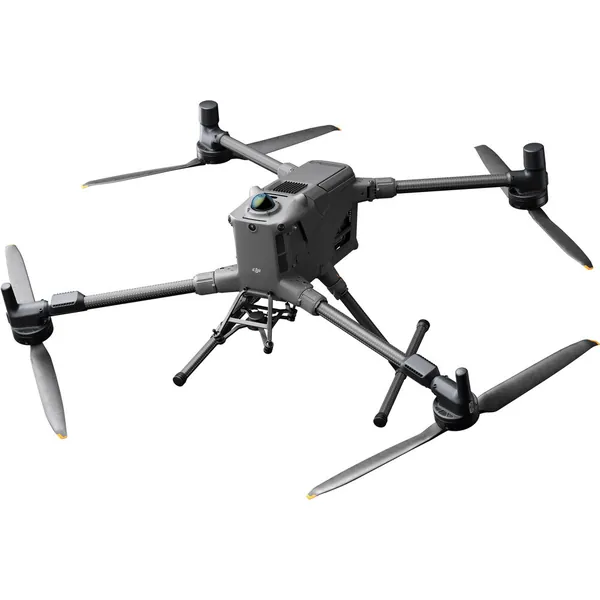

DJI Matrice 400 Drone

Overview

The DJI Matrice 400 is a next-generation industrial drone engineered for mission-critical operations. Combining robust durability with advanced AI-driven flight systems, this quadcopter is designed to excel in demanding environments—from search and rescue to precision agriculture and infrastructure inspection.

Key Features

• Advanced RTK Positioning: Real-time kinematic GPS with centimeter-level accuracy for precise autonomous flight paths.
• 360° Obstacle Avoidance: Multi-directional sensing system using binocular vision and infrared sensors for safe navigation in complex terrain.
• Weather-Resistant Design: IP55-rated dust and water resistance, operable in temperatures from -20°C to 50°C.
• Modular Payload System: Quick-swap gimbal mount supporting Zenmuse cameras, LiDAR, thermal sensors, and spraying modules.
• HyperSync Transmission: OcuSync 4.0 technology provides 20 km (12.4 mi) range with 1080p low-latency video feed.
• AI Edge Computing: Onboard processor for real-time object detection, counting, and automated anomaly alerts.

Technical Specifications

• Max Takeoff Weight: 9.2 kg (20.3 lbs) including payload
• Max Flight Time: 55 minutes (no payload) / 38 minutes (with standard gimbal + camera)
• Max Speed: 23 m/s (51 mph) in Sport Mode
• Max Wind Resistance: 15 m/s (34 mph / 7 Bft)
• Operating Frequency: 2.4 GHz / 5.8 GHz (auto-switching)
• Battery Capacity: 6250 mAh Li-ion (hot-swappable)
• IP Rating: IP55 (drone) / IP67 (battery)
• GNSS Support: GPS + GLONASS + BeiDou + Galileo
• Payload Capacity: 2.7 kg (5.95 lbs) on gimbal mount

Benefits

• Enhanced Safety: Autonomous return-to-home, geofencing, and redundant IMU/compass systems reduce crash risk.
• Operational Efficiency: Hot-swappable batteries and quick-release payloads keep downtime under 30 seconds.
• Superior Data Quality: 10-bit HDR video and 20 MP stills from integrated camera, or plug in your own high-end sensor.
• Scalability: DJI Pilot 2 app supports custom Waypoint missions, terrain-following, and multi-drone fleet management.
• Cost-Effective Maintenance: Self-diagnostic system alerts users to component wear, with modular parts that users can replace in the field.

Ideal Use Cases

• Search and rescue operations in remote or disaster-stricken areas
• Thermal inspection of power lines, solar farms, and industrial pipelines
• Precision agriculture: crop health mapping and targeted spraying
• Construction site monitoring and volumetric surveying
• Law enforcement and border surveillance
