DJI Mic 3 Receiver

Overview

DJI Mic 3 is compact and portable, delivering clear, detailed audio. With 4TX+8RX, adaptive gain control, and voice tone presets, it excels in any scenario.

Key Features

Lightweight & Intuitive, Compact Storage [1]
The DJI Mic 3 Transmitter is compact, lightweight, and discreet. It supports both magnetic and clip-on attachment methods. The all-in-one charging case conveniently stores the transmitters, receiver, and accessories[1] for easy access and portability.

4TX + 8RX Capability & Four-Channel Output [2]
DJI Mic 3 supports simultaneous use of up to four transmitters and eight receivers. When paired with select cameras or software, the DJI Mic 3 Receiver supports independent output of four audio tracks. Whether it's a group interview or a multi-camera production, you'll get crystal-clear audio on every device, making post-production a breeze.

Adaptive Gain Control for Balanced Volume [3]
Automatic mode effectively prevents audio clipping, making it ideal for outdoor environments with dramatic volume fluctuations, such as sporting events. Dynamic mode automatically adjusts gain in response to volume changes, ensuring consistent loudness—ideal for quiet indoor settings like studios.

Three Voice Tone Presets [4], Two-Level Noise Cancelling [5]
There are three tone presets to choose from: Regular offers natural and balanced audio, Rich puts extra emphasis on the lows for a fuller, more powerful sound, and Bright highlights the highs, giving your voice extra clarity. There are also two noise reduction levels: The Basic level is ideal for quiet indoor settings, reducing noise while preserving vocal clarity. The Strong level excels in noisy environments, significantly cutting ambient noise for clearer vocals.

Dual Band Anti-Interference [6], Lossless Audio Transmission
DJI Mic 3 supports automatic frequency hopping between 2.4 GHz and 5 GHz bands [6], with a transmission range of up to 400 meters [7]. With Lossless Audio enabled [8], it supports 48kHz 24-bit high-fidelity audio transmission, ensuring pure and clear sound quality even in complex environments.

Dual-File 32-bit Float Internal Recording
DJI Mic 3 saves both the original track and an algorithm-enhanced version at once [9], preventing material loss and streamlining post-production. With its high dynamic range, it excels at capturing every nuance of a voice, from quiet whispers to booming decibel levels, providing more flexibility in post-production.

Integrated Timecode for Seamless Editing
DJI Mic 3 offers high-precision timecode support [10], with the transmitter embedding timecode data during internal recording and the receiver supporting both timecode input and output. With less than one frame of drift over 24 hours [11], you can instantly align multi-camera footage in post-production for faster, more efficient editing.

Extended Operating Time & Fast Charging
A transmitter lasts up to 8 hours [12], and a receiver up to 10 hours [12]. A fully charged charging case provides about 2.4 full charges to achieve a total of 28 hours of extended use [13]. Charge for just 5 minutes and get up to 2 hours of use [14] from the transmitter and receiver—ideal for a quick power boost. It also supports multiple power-saving features, including using while charging[15].

Tips
Not compatible with DJI Mic, DJI Mic 2, or DJI Mic Mini.

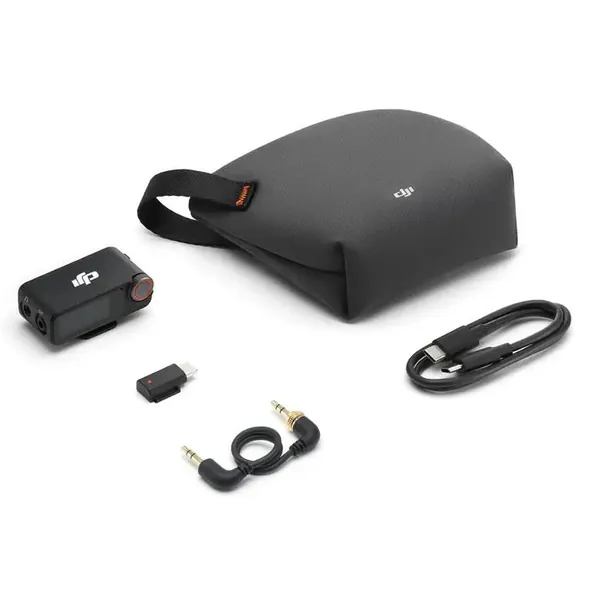

In The Box
-DJI Mic 3 Receiver × 1
-DJI Mic 3 Mobile Phone Adapter (USB-C) × 1
-USB-C to USB-C Data Cable × 1
-DJI Mic 3 Locking Audio Adapter Cable (3.5mm TRS to TRS) × 1
-DJI Mic 3 Compact Carrying Pouch × 1

Specifications
Dimensions: 53.85×28.69×22.00 mm (L×W×H)+
Weight: 25.1 g
Wireless Mode:
Wi-Fi: 802.11 a/b/g/n/ac/ax
SDR: Customizable
Equivalent Isotropic Radiated Power (EIRP):
Wi-Fi:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
SDR:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
* Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Bluetooth Protocol: Bluetooth 5.4
Bluetooth Operating Frequency: 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP): BLE: < 10 dBm
Battery Type: Li-ion
Battery Capacity: 275 mAh
Battery Energy: 1.065 Wh
Battery Voltage: 3.87 V
Charging Specification: Max 5 V
Charging Temperature: 5° to 45° C (41° to 113° F)
Operating Temperature: -10° to 45° C (14° to 113° F)
Charging Time: Approx. 50 minutes

Compatibility
DJI Mic 3

Notes
1. When storing accessories in the charging case, avoid stacking to prevent receiver screen damage.
2. To achieve the 4TX + 8RX setup or four-channel output, additional accessories must be purchased separately. The four-channel output feature is only supported by certain Sony camera models (requiring the DJI Mic Series Camera Adapter) and certain computer software (via USB output). For details, refer to the compatibility list on the Downloads page of the official DJI Mic 3 website.
3. The Adaptive Gain Control feature can be configured via the receiver or the DJI Mimo app, and it is turned off by default.
4. The Voice Tone Preset modes can be selected via the receiver or the DJI Mimo app, with the default set to Regular.
5. The Noise Cancelling feature is turned off by default but can be activated and set to either Strong or Basic level through the receiver, DJI Mimo app, or device directly connected via the OsmoAudio™ ecosystem. When using the receiver with multiple transmitters, you can adjust the noise cancelling settings for each transmitter individually or for all transmitters simultaneously. When an Osmo Action 5 Pro, Osmo Action 4, or Osmo Pocket 3 is connected directly via OsmoAudio™, settings can be adjusted on the product interface. When the transmitter is directly connected to a smartphone, the settings can be adjusted within the Mimo app.
6. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
7. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with Lossless Audio off, in an open, unobstructed environment free of interference.|
8. When Lossless Audio is enabled, the transmitter's battery life will decrease by approximately 2 hours under nominal operating conditions, and the maximum transmission range will be reduced by approximately 50%.
9. Algorithm-based enhancements include voice tone presets, low cut, noise cancellation, and adaptive gain control.
10. For details on supported timecode modes, frame rates, and timecode output formats, refer to the FAQ page on the official DJI Mic 3 website.
11. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in an environment free of electromagnetic interference, with continuous power supplied to the transmitters and receiver following timecode synchronization and throughout 24 hours of continuous recording.
12. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
13. Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) paired with a fully charged charging case, with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
14. Measured in a controlled environment with the transmitters and receiver battery levels below 25%, using a charger of 5V output, with noise cancellation off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver, and the receiver connected to a camera via the 3.5mm audio cable.
15. If your phone uses a Lightning interface, the receiver cannot be powered by the phone's battery without an external power source. To enable simultaneous charging and use, you need to purchase the DJI Mic 3 Mobile Phone Adapter (Lightning) separately.
