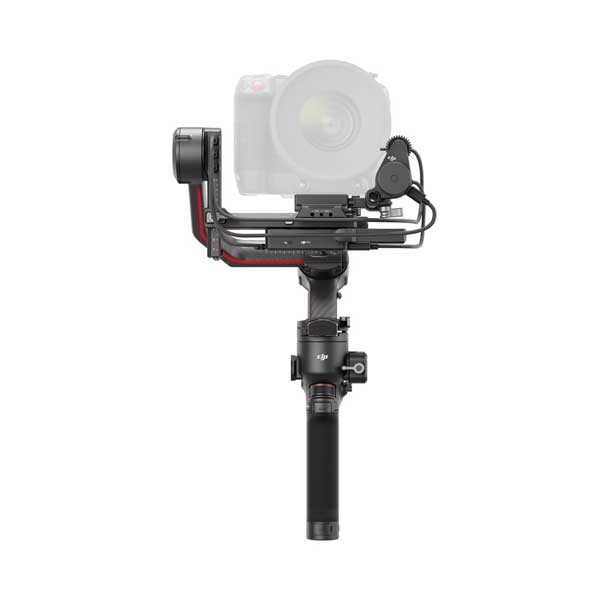

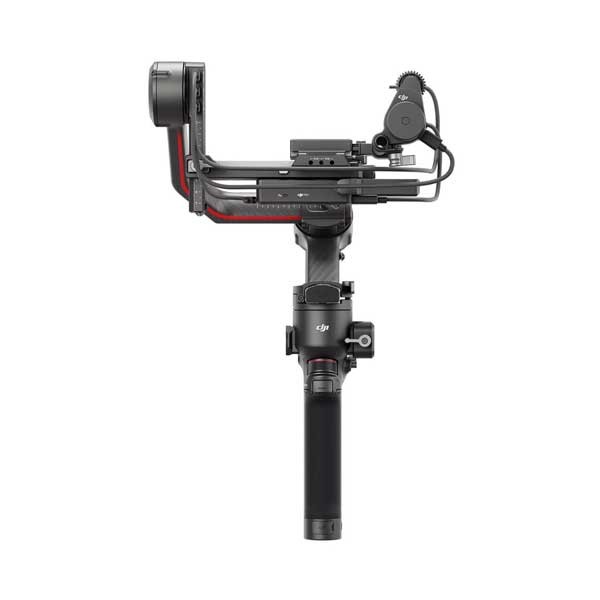

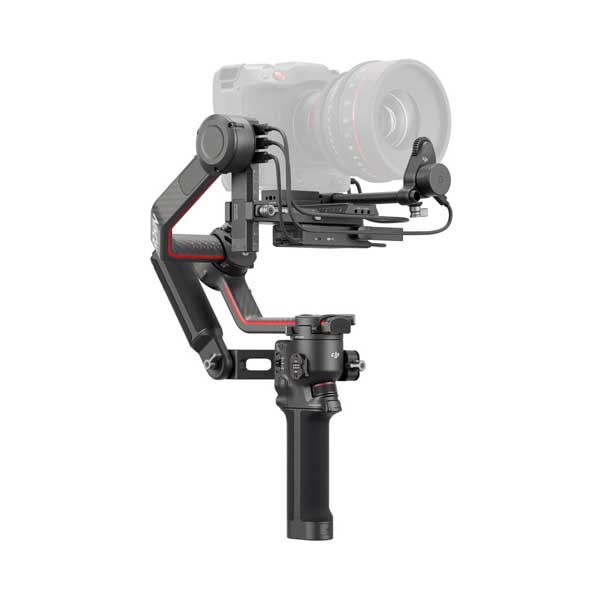

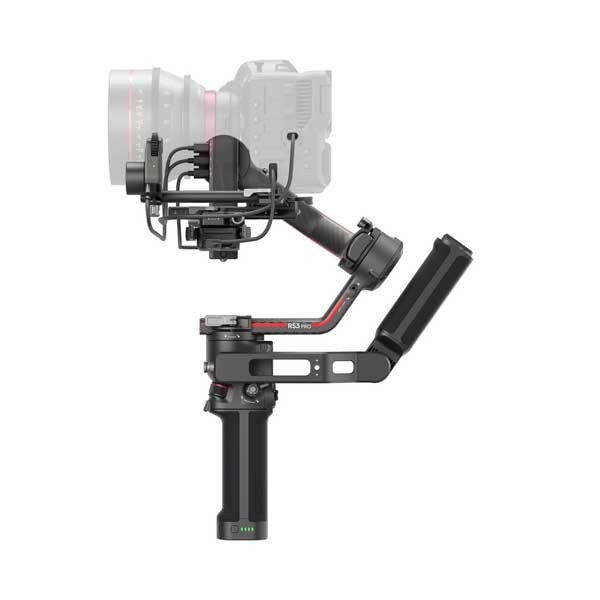

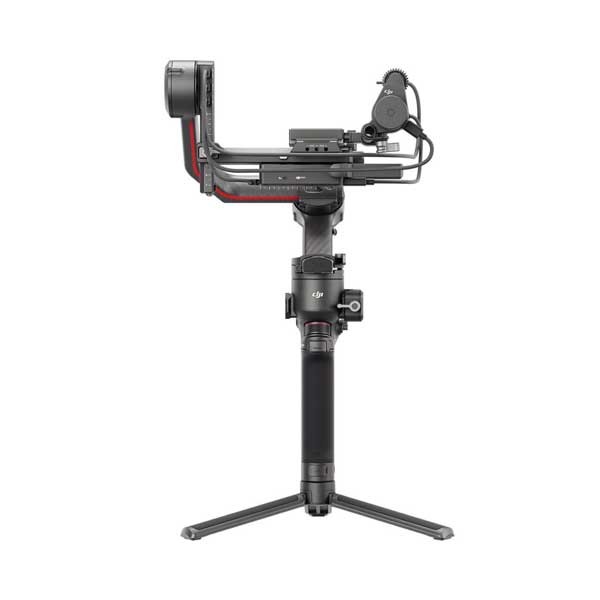

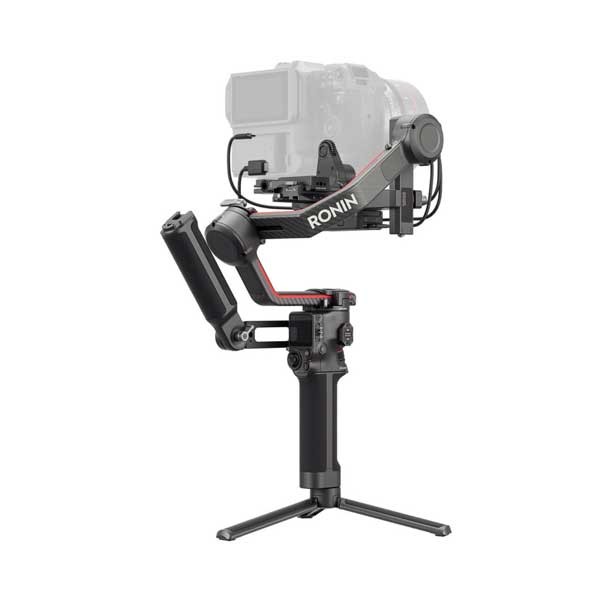

DJI RS 3 Pro Combo Camera Stabilizer

The DJI RS 3 Pro is an advanced camera expansion platform designed to provide comprehensive shooting solutions for professional videographers and crews. Here's an overview of its features and specifications:

Pro-Grade Design:

Handle Big Payloads: Extended carbon fiber axis arms provide more balancing space for professional cameras like the Sony FX6 or Canon C70 with 24-70mm F2.8 lenses.

Extended Lower Quick-Release Plate: Ensures stable camera mounting and supports lens support for secure setups.

Fine-Tuning Knob: Allows precise adjustment of the tilt axis for balancing, with Teflon®-coated components reducing friction and resistance.

Automated Axis Locks:

Fast Startup: Press and hold the power button to automatically unlock and expand the three axes for quick setup. Press once to lock and enter sleep mode, optimizing battery life.

Easy Folding: Press and hold the power button to automatically fold and lock the gimbal for convenient transport.

High-Capacity Payloads:

Optimized Structural Design: Maintains a lightweight body (1.5 kg/3.3 lbs) while supporting robust payloads of up to 4.5 kg/10 lbs.

Compatibility: Supports various professional camera setups including Canon C70, Sony FX6, Red Komodo, Panasonic S1H, Nikon Z9, and Blackmagic Design BMPCC 6K Pro.

Wireless Shutter Control:

Dual-Mode Bluetooth: Enables efficient and reliable wireless shutter control after initial pairing, allowing convenient video and photo shooting directly from the stabilizer.

Instant Mode Switching:

Gimbal Mode Switch: Easily switch between Pan follow, Pan and Tilt follow, and FPV modes, with customizable FPV mode settings for quick adjustment.

Bigger Touchscreen:

1.8-inch OLED Display: Offers a 28% larger screen compared to previous models, providing convenient parameter setting, shooting status checking, and subject framing.

Pro-Grade Stabilization:

Carbon Fiber Construction: Arms constructed from layered uncut carbon fiber increase stiffness and reduce weight for improved stability in demanding shooting environments.

Enhanced Stability: Empowered by third-generation RS stabilization algorithms, providing a 20% increase in stability over previous models.

SuperSmooth Mode: Increases motor torque for enhanced stabilization, even in fast-moving scenarios or with long lenses.

Pro-Grade Focusing:

LiDAR Assistance: Utilizes LiDAR Range Finder technology for precise focusing with 43,200 ranging points within a 14-meter distance, especially useful in low-light or complex scenarios.

Wide Mode and Spot Mode: Offers automatic subject detection and manual framing or tapping for focus adjustment.

Focus Motor: Next-generation motor provides torque three times stronger, enabling smoother focusing and cinematic autofocus on manual lenses.

ActiveTrack Pro:

Next-Generation Tracking: Improved ActiveTrack Pro reads images directly from the LiDAR Range Finder, providing accurate tracking with reduced latency for swift subject tracking.

Pro-Grade Video Transmission:

Quick Mounting: Pair with DJI Transmission for a customized shooting solution, offering long-range wireless transmission with ultra-low latency.

O3 Pro Video Transmission: Supports a 6km/20,000ft range with automatic frequency hopping for stable remote monitoring.

Coordinated Shooting:

High-Bright Remote Monitor: Supports live feeds and collaborative control of gimbal, focus, and camera parameters with multiple receivers for integrated shooting solutions.

Pro-Grade Wireless Control:

Gimbal and Focus Control: Compatible with Ronin 4D Hand Grips, DJI Master Wheels, and DJI Force Pro for precise control. Built-in gyroscopic sensor enables standalone motion control for complex camera movements.

Seamless Wireless Camera Control:

Mirror Control Mode: Enables wireless control of camera menu operations for Sony mirrorless cameras directly from a remote monitor, simplifying shooting setups.

Extensive Expandability:

Dual RSA/NATO Ports: Connects to various accessories for expanded shooting options, offering solutions for a variety of scenarios.

Specifications

Peripheral:

• Accessory Port: RSA/NATO Ports, 1/4"-20 Mounting Hole, Cold Shoe
• Video Transmission/LiDAR Range Finder Port: USB-C
• RSS Camera Control Port: USB-C
• Focus Motor Port: USB-C

Battery:

• Model: BG30-1950 mAh-15.4V
• Type: LiPo 4S
• Capacity: 1950 mAh
• Energy: 30 Wh
• Max. Runtime: 12 hours
• Charging Time: Approx. 1.5 hours (using 24W charger; recommended to use QC 2.0 or PD protocol chargers)
• Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections:

• Bluetooth: 5.0
• Charging Port: USB-C

Ronin App Requirements:

• iOS 11.0 or above
• Android 7.0 or above

Languages Supported by the Touchscreen:

• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance:

• Tested Payload: 4.5 kg (10 lbs)
• Maximum Controlled Rotation Speed:
• Pan: 360°/s
• Tilt: 360°/s
• Roll: 360°/s
• Mechanical Range:
• Pan axis: 360° continuous rotation
• Roll axis: -95° to +240°
• Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics:

• Operating Frequency: 2.400-2.484 GHz
• Bluetooth Transmitter Power: <8 dBm
• Operating Temperature: -20° to 45° C (-4° to 113° F)

Weight:

• Gimbal: Approx. 1,143 g (2.51 lbs)
• Grip: Approx. 265 g (0.58 lbs)
• Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
• Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)

Gimbal Dimensions:

• Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
• Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
