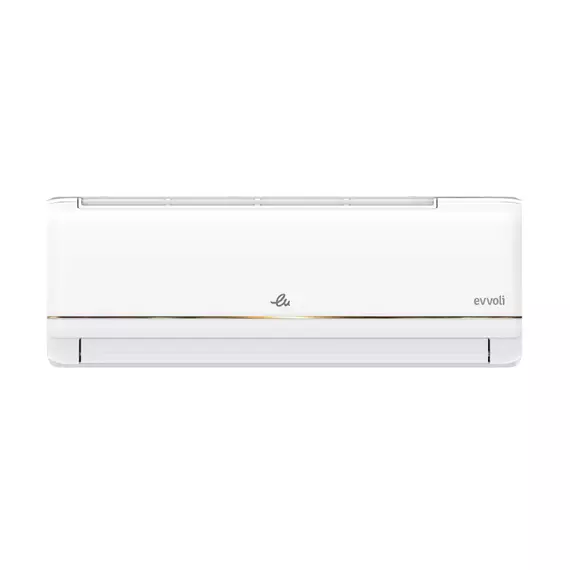

Evvoli AC Inverter Cooling and Heating 24000BTU 3M Cooper Pipe MD-EVCS

Specifications BASIC INFORMATION Power Supply V,Ph,Hz: 220-240V,1Ph,50Hz Cooling Capacity Btu/h: 24000 Input W: 2503 Rated Current A: 10.9 EER W/W: 2.81 Heating Capacity Btu/h: 26000 Input W: 2374 Rated Current A: 10.3 COP W/W: 3.21 Max. Input Consumption W: 4000 Max. Current A: 20.0 Starting Current A: 55 Compressor Model: PA280G2CS-4MTL Type: Rotary Brand: GMCC Capacity Btu/h: 27756 Input W: 1920 Rated Current (RLA) A: 8.90 Locked rotor Amp (RLA) A: 55 Thermal Protector  — Thermal Protector Position: Internal Capacitor uF: 60 Refrigerant oil/oil Charge ml: ESTEL OIL VG74/750 SPECIFICATIONS Refrigerant Type g: R410A/1800 Design pressure MPa: 4.2/1.5 Refrigerant Piping Liquid Side/Gas Side mm(inch): Φ9.52/Φ15.9(3/8″/5/8″) Max. Refrigerant Pipe Length m: 25 Max. Difference In Level m: 10 Connection Wiring: 4×1.0 Plug Type: 3×2.5 Thermostat Type: Remote Control Operation Temperature℃: 17-30 Room Temperature Indoor(Cooling/ Heating): ℃ 17～32/0～30 Outdoor(Cooling/ Heating): ℃ 18～43/-7～24 Application Area (Cooling Standard) m2: 32-47 Container Loading 20′ feet Units: 66 Container Loading 40′ feet Units: 138 Container Loading 40′ feet High Units: 152 INDOOR UNIT Indoor Fan Motor Model: YKFG-45-4-22 Input W: 77 Capacitor uF: 3.0 Speed(Hi/Mi/Lo) r/min: 1120/1020/950 Indoor Coil Number Of Rows: 2 Tube pitch(a)x row pitch(b) mm: 21×13.37 Fin Spacing mm: 1.3 Fin type (code): Hydrophilic Aluminium Tube outside dia.and type mm: Φ7.innergroove tube Coil length x height x width mm: 820x336x26.74 Number Of Circuits: 4 Indoor air flow (Hi/Mi/Lo) m3/h: 1060/947/870 Indoor noise level (Hi/Mi/Lo) dB(A): 46.5/43/39.5 Indoor Unit Dimension(W*D*H) mm: 1080x226x335 Packing (W*D*H) mm: 1155x415x315 Net Weight Kg: 12.7 Gross Weight Kg: 16.1 OUTDOOR UNIT Outdoor Fan Motor Model: YKT-75-6-200L Input W: 144 Capacitor uF: 3.0 Speed r/min: 860 Outdoor Coil Number Of Rows: 2 Tube pitch(a)x row pitch(b) mm: 21×13.37 Fin Spacing mm: 1.4 Fin type (code): Hydrophilic Aluminium Tube outside dia.and type mm: Φ7,innergroove tube Coil length x height x width mm: 760x651x26.74 Number Of Circuits: 6 Outdoor noise level dB(A): 59 Outdoor Unit Dimension(W*D*H) mm: 845x363x702 Packing (W*D*H) mm: 965x395x765 Net Weight Kg: 49 Gross Weight Kg: 52.0
