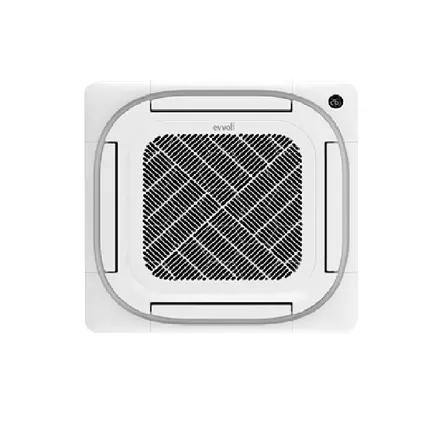

Evvoli Air Conditioner Ceiling Cassette 24000BTU Inverter T3 R410 EVCAS24KT3INV

Key Features: Internal Water Pump R410A Gas Golden Coated condenser and evaporator 360° Air flow Slim body Remote + Wired Control Flexible Installation Louver Position Memory Technical Specifications: Cooling (T1) Capacity Btu: 23800 Current A: 8.08 EER W/W: 3.76436107854631 Cooling (T3) Capacity Btu: 21200 Current A: 9.97 EER W/W: 2.7250879249706 Heating Capacity Btu: 25248.8 Current A: 7.83 COP W/W: 4.15 Max. Power Input W: 3200 Max. Current A: 14.1 Max. Air Flow Volume m3/h: 1490 Refrigerant Refrigerant Type:  R410A Charged g: 2200 Liquid piping mm: Φ9.52 Gas piping mm: Φ15.9 Max. Discharge Pressure Mpa: 4.8 Max. Suction Pressure Mpa: 1.5 Power Supply Voltage V: 220-240 Phase Ph: 1 Frequency Hz: 50 Indoor Unit Indoor Evaporator pipe Material: Copper Evaporator bend: Yes Evaporator row: 2 Evaporator pipe diameter mm: Φ7 Fan Motor: ZKFN-125-8-1 Max. Noise: dB(A) 47.5 Outdoor Unit Outdoor Condenser Pipe Material: Copper Outdoor Compressor Type: ROTARY Compressor Brand: GMCC Compressor Model: ATF235D22TMT Outdoor Fan Motor: ZKFN-120-8-2 Condenser Row: 2.6 Condenser Pipe Diameter mm: Ф7 Max. Noise: dB(A) 58 Length of Pipe kit m: / Product and Packaging Information Indoor Unit Product Dimension (WxHxD) body mm: 830x830x245 Package Dimension (WxHxD) body mm: 910x910x290 Product Dimension (WxHxD) panel mm: 950x950x55 Package Dimension (WxHxD) panel mm: 1035x1035x90 Net weight body kg: 24.5 Gross weight body kg: 29.2 Net weight panel Kg: 6 Gross weight panel Kg: 9 Outdoor Unit Product Dimension (WxHxD) mm: 946x410x810 Package Dimension (WxHxD) mm: 1090x500x875 Net weight Kg: 58.6 Gross weight Kg: 63.2
