Camera Specifications
Image Sensor: 1/2.9” 2MP Progressive Scan CMOS
Lens: 2.8mm @ F2.0
Field of View: 128° (Diagonal), 108° (Horizontal), 56° (Vertical)
Minimum Illumination: 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Night Vision: Up to 15 meters with color night vision; IR-Cut filter with auto-switching
Video Resolution: 1080p Full HD (1920 x 1080)
Frame Rate: Up to 15fps; self-adaptive during network transmission
Video Compression: H.265 / H.264
Audio: Two-way talk with built-in microphone and speaker
Siren & Strobe Light: Integrated for active defense
Power & Battery
Battery: 5200 mAh rechargeable lithium battery
Battery Life: Up to 120 days on a full charge
Solar Panel: 5W high-efficiency solar panel included for continuous charging
Charging: USB-C port for manual charging if needed
Connectivity
Wi-Fi: IEEE 802.11b/g/n (2.4 GHz)
Pairing: AP pairing for easy setup
Smart Integration: Compatible with Google Assistant and Amazon Alexa
Smart Features
Motion Detection: AI-powered human and vehicle shape detection
Detection Zones: Customizable areas for motion alerts
Alerts: Instant push notifications to mobile devices
Voice Alerts: Customizable prerecorded messages
Always-On Video (AOV): Continuous recording mode for 24/7 surveillance
Durability & Design
Weather Resistance: IP65 rated for outdoor use
Operating Conditions: -20°C to 50°C temperature range
Mounting: Flexible mounting options included
Storage Options
Local Storage: microSD card slot (up to 256 GB)
Cloud Storage: EZVIZ CloudPlay subscription service available

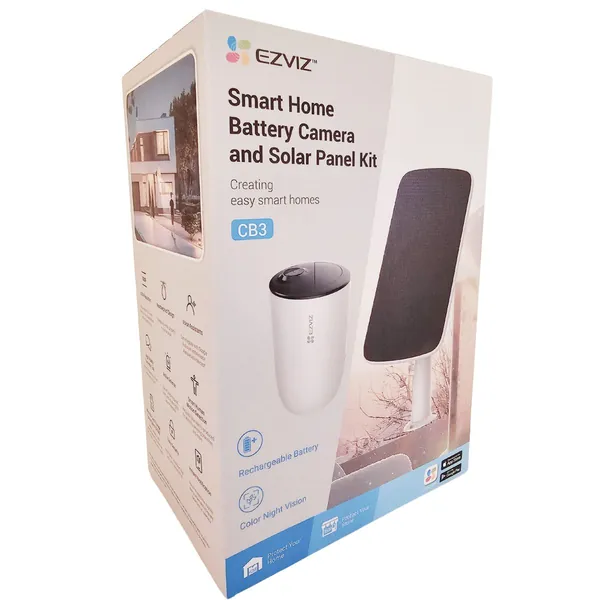

What's in the Box
EZVIZ CB3 Camera
5W Solar Panel
Mounting Bracket and Screws
USB-C Charging Cable
Quick Start Guide
