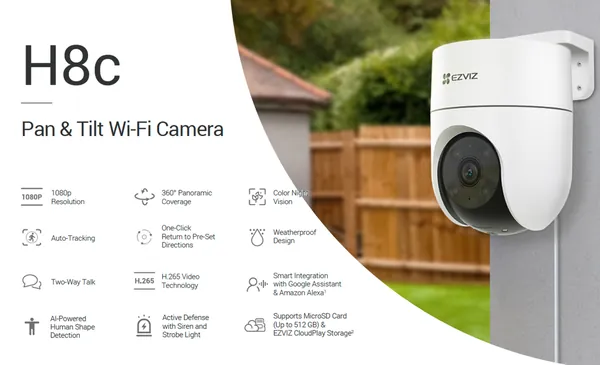

EZVIZ H8C Full HD Outdoor Pan/Tilt Security WiFi Camera

Camera & Video

• Resolution: 1920 × 1080 (Full HD)

• Frame Rate: 15/20/25/30 fps (adaptive)

• Lens: 4 mm, f/2.0

• Field of View: 104° diagonal (horizontal 87°, vertical 46°)

• Image Enhancements: 3D DNR (Digital Noise Reduction), WDR (Wide Dynamic Range), IR-cut filter

• Night Vision:

  • IR Mode: up to 30 meters

  • Color Night Vision: up to 15 meters using built-in spotlights

Pan & Tilt Functionality

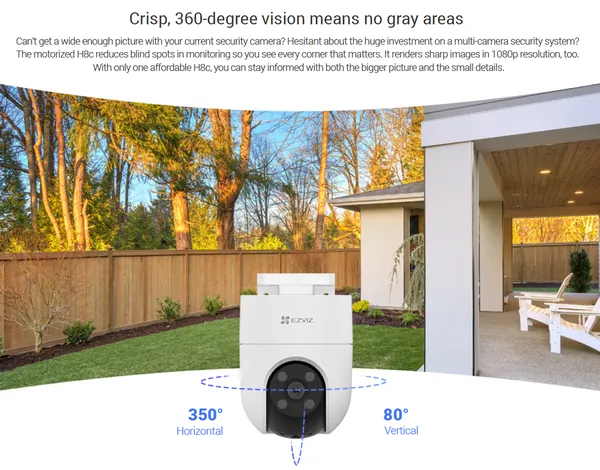

• Pan: 0° to 350°

• Tilt: -5° to 80°

• Preset Positions: Up to 12

• Smart Tracking: Automatically follows human motion

AI Smart Detection & Alerts

• Human Shape Detection

• Customizable Motion Detection Zones

• Instant App Notifications

• Active Defense: Loud siren and dual warning lights

Audio

• Built-in Microphone and Speaker

• Two-Way Audio Communication

Connectivity

• Wireless: Wi-Fi 2.4 GHz (IEEE 802.11b/g/n)

• Wired: RJ-45 Ethernet Port (10/100 Mbps)

• Network Security: WPA/WPA2 encryption

Storage

• microSD Card Support: up to 512 GB

• Cloud Storage: Optional via EZVIZ CloudPlay

Video Compression

• Formats: H.265 / H.264

• Bitrate: Adaptive bitrate up to 2 Mbps

Power & Environmental

• Power Input: DC 12V / 1A

• Power Consumption: Max 12W

• Operating Temperature: -30°C to 50°C

• Humidity: ≤95% (non-condensing)

• Weatherproof Rating: IP65 (outdoor use)

Physical Specifications

• Dimensions: 100 × 129 × 149 mm

• Net Weight: Approx. 420 g

• Color: White

Smart Features & Integration

• Voice Control: Compatible with Google Assistant and Amazon Alexa

• App Support: EZVIZ App for remote view, pan/tilt, settings, and playback

What’s in the Box

• EZVIZ H8C Camera

• Power Adapter

• Mounting Kit

• Waterproof Accessories

• Quick Start Guide
