EZVIZ Solar Panel for Battery Cameras

Compatibility

• Designed for all EZVIZ outdoor battery cameras (e.g., EB8, HB8, CB3, BC1C)

Key Specifications

• Solar Panel Output: 24W (monocrystalline cells, ~23% efficiency)

• Built-in Battery: 75Wh (14.6V × 5000mAh)

• Charging Ports: 1 × Type-C input, 2 × USB-A outputs (supports charging two cameras simultaneously)

• Battery Status Monitoring: Visible in EZVIZ app for supported devices

• Weather Resistance: IP65 rated, stainless steel fasteners

• Operating Temperature: -20°C to 60°C (charging range 0°C to 45°C)

• Dimensions: 220.6 × 300 × 440 mm

• Weight: 2.1 kg (net), 3.06 kg (packaged)

Features

• Efficient energy harvesting

• Built-in backup power for cloudy days

• Charges multiple devices

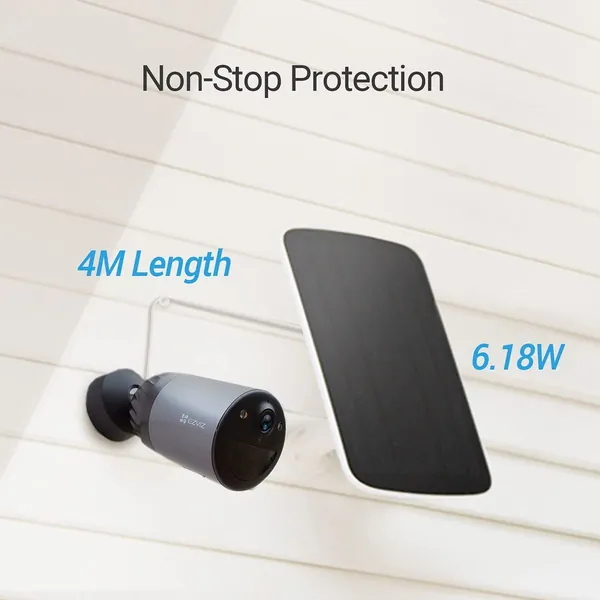

6.18W Solar Panel (Model CS-CMT-Solar Panel-C / Solar Panel-E)

Compatibility

• Designed for EZVIZ Type-C battery-powered cameras (CB3, CB8, BC1C, EB8, HB8)

Key Specifications

• Power Output: Up to 6.18W at 6V (~1030mA)

• Cell Type: Monocrystalline silicon

• Efficiency: ~21.6%

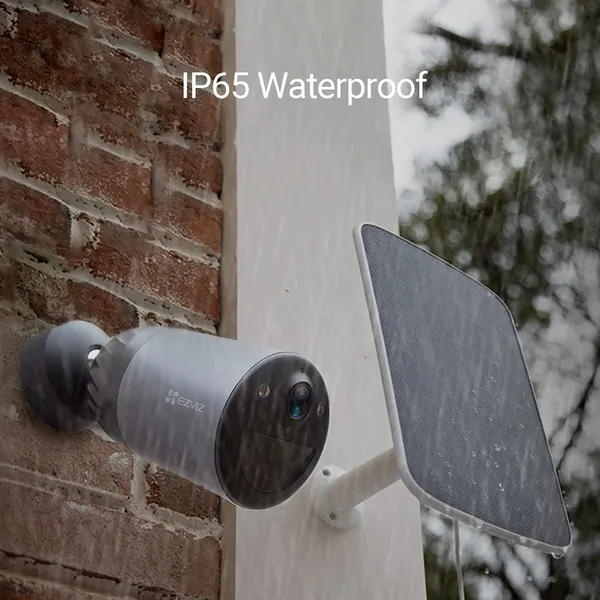

• Weather Resistance: IP65

• Cable Length: 4 meters

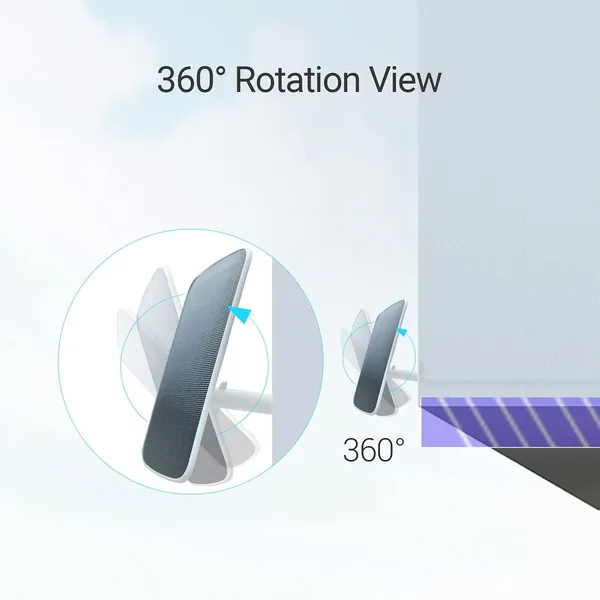

• Adjustable Bracket: 360° rotation

• Operating Temperature: -20°C to 60°C

• Humidity Tolerance: ≤90% (non-condensing)

• Dimensions: 292 × 195 × 15 mm

• Weight: Approx. 1.05 kg

Features

• Lightweight and compact

• Easy installation with long cable

• Ideal for single-camera setups
