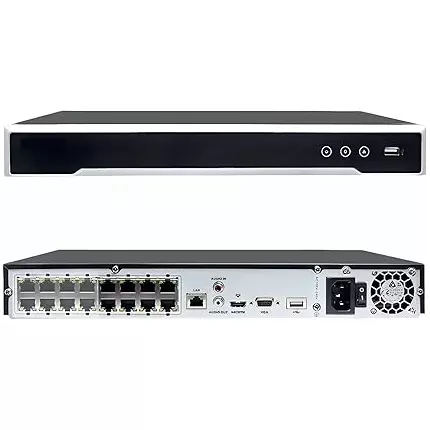

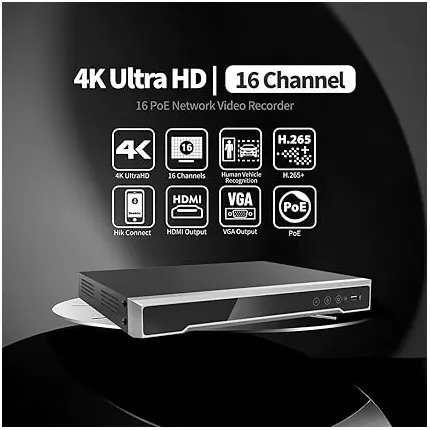

Hikvision 16-Channel Mini Network Video Recorder - 16-Ch 1U 16 PoE 4K NVR, Perfect for Comprehensive Surveillance Systems DS-7616NI-Q2/16P

Up to 16-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 160 Mbps incoming bandwidth Specification Motion Detection 2.0: Human/Vehicle Analysis 4 RAID Type : No Video and Audio IP Video Input: 16-ch HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Model: HDMI/VGA simultaneous output Incoming Bandwidth: 160 Mbps Outgoing Bandwidth: 80 Mbps Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding Format: H.265+,H.265,H.264+,H.264 Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous playback: 16-ch Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Network Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power: ≤ 150W Standard: IEEE 802.3 af/at Auxiliary Interface SATA: 2 SATA interfaces Capacity: Up to 8TB capacity for each disk USB Interface: 2 × USB 2.0 General Power Supply: 100-240V～, 50/60Hz, 3.2A MAX Consumption: ≤ 15W Working Temperature: -10 to +55º C (+14 to +131º F) Working Humidity: 10% to 90% Chassis: 1U chassis Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") Weight: ≤ 2.6 kg (5.7 lb)
