JBL Bar 800

Overview:

• Product Name: JBL Bar 800
• Total Power Output: 720W
• Key Technologies: True Dolby Atmos® 3D surround sound, PureVoice dialogue enhancement, built-in Wi-Fi

Features:

1. True Dolby Atmos® Surround Sound:

   • Immersive 3D sound with two up-firing drivers.

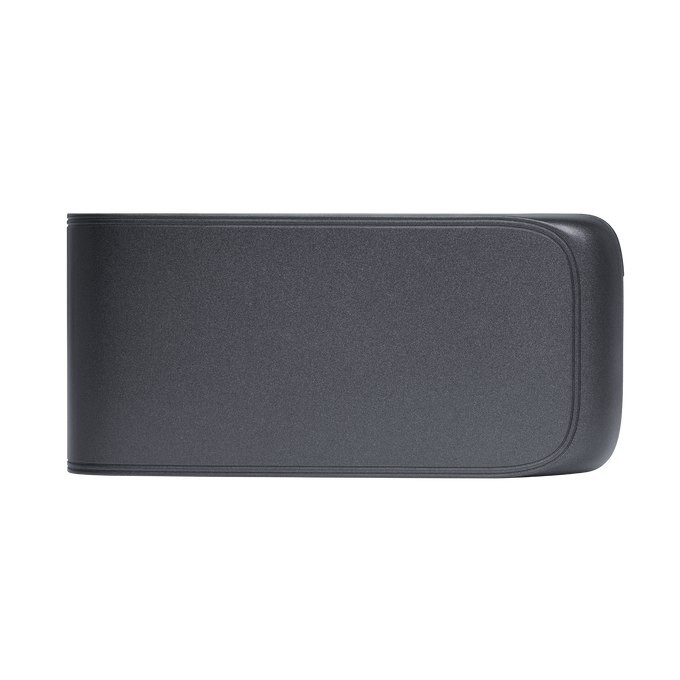

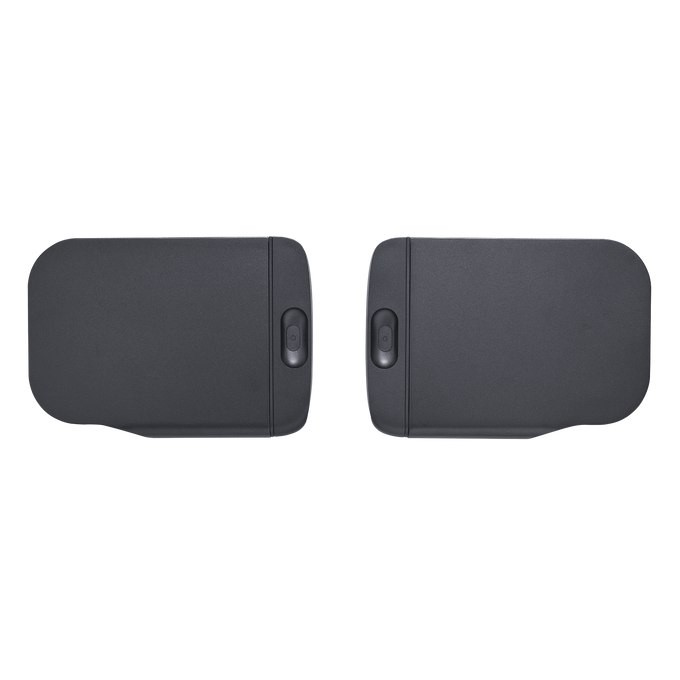

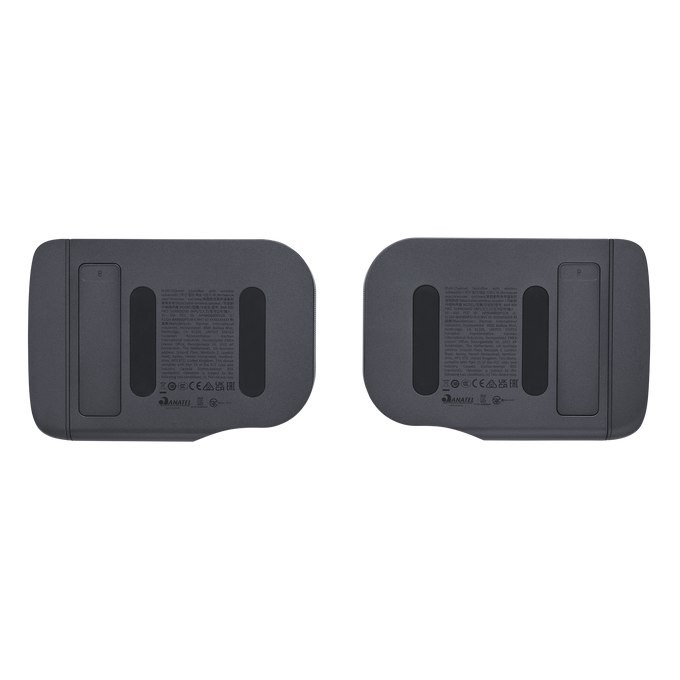

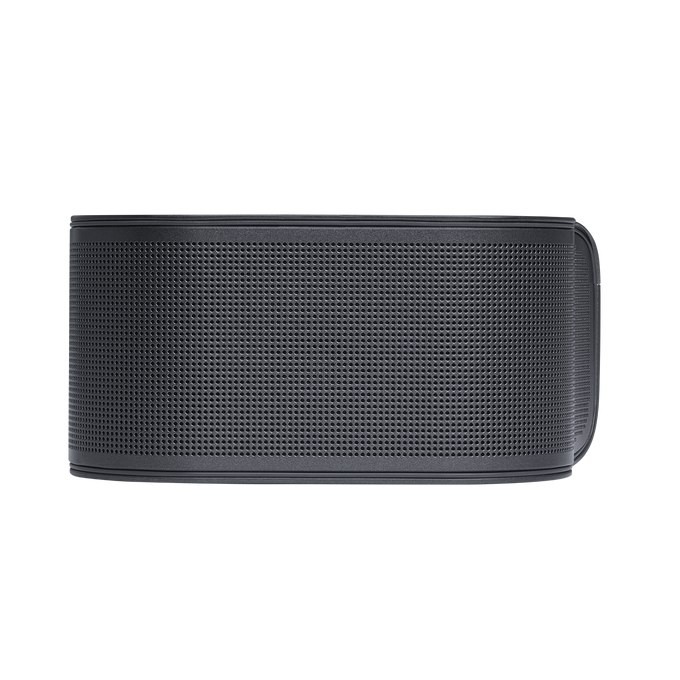

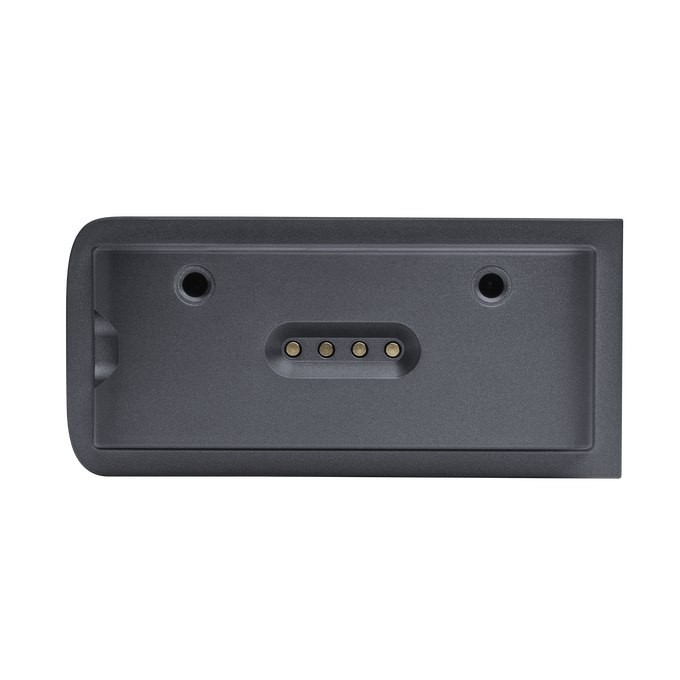

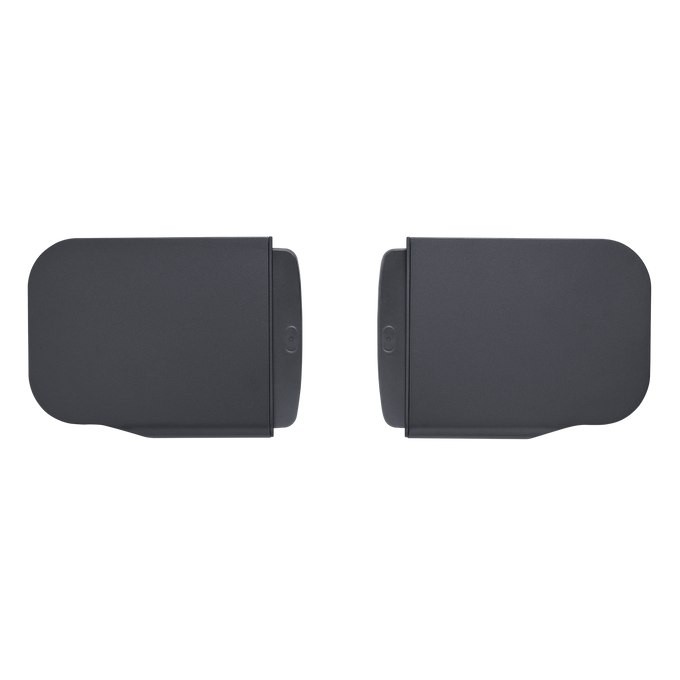

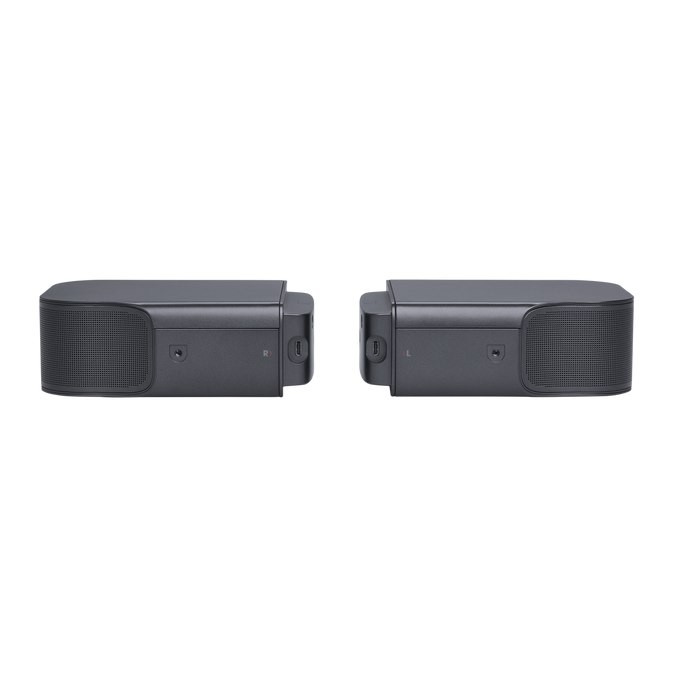

2. Real Surround Sound with Detachable Speakers:

   • Detachable, battery-powered surround speakers for real surround sound without extra wires.

3. 10” Wireless Subwoofer:

   • Provides precise and thrilling bass for both movies and music.

4. PureVoice Dialogue Enhancement:

   • Optimizes voice clarity using a unique algorithm to ensure clear dialogue.

5. 720W Output Power:

   • High power output transforms movies, music, and games into immersive experiences.

6. Built-in Wi-Fi and Streaming Services:

   • Access to over 300 online music streaming services via AirPlay, Alexa MRM, and Chromecast built-in.
   • Automatic software updates via Wi-Fi.

7. Compatibility with Voice Assistants:

   • Works with Alexa, Google Assistant, and Siri for voice-controlled music streaming.

8. HDMI eARC with 4K Dolby Vision Pass-through:

   • Allows uncompressed Dolby Atmos surround sound and 4K video quality through a single HDMI connection.

9. Easy Sound Calibration:

   • Calibration feature adjusts sound settings to match room layout for optimal 3D surround effects.

10. JBL One App:

    • Customize EQ and control speakers via the app.

Technical Specifications:

1. General:

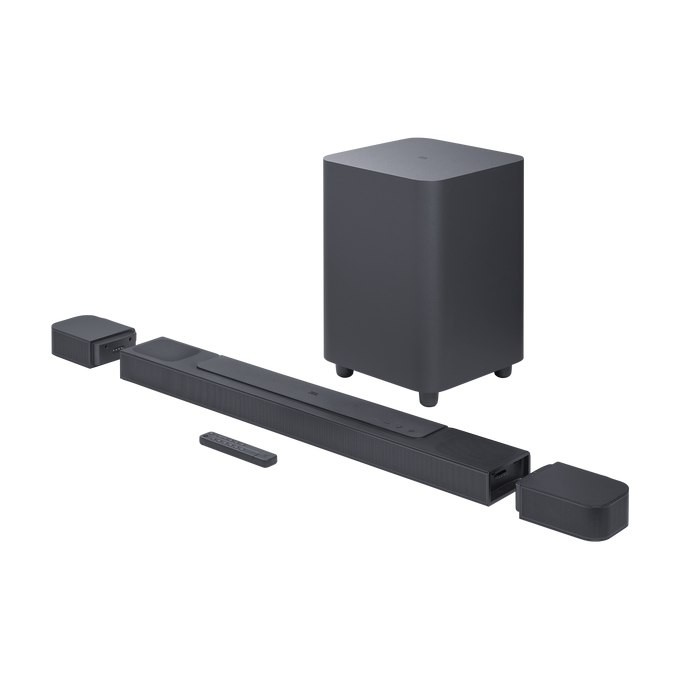

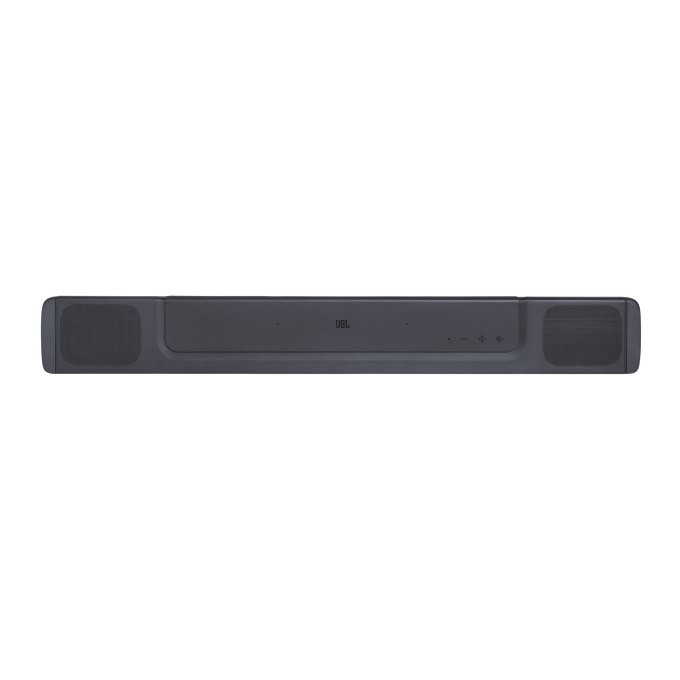

   • Model: BAR 800 (soundbar unit), BAR 800 SURROUND (detachable speakers), BAR 800 SUB (subwoofer unit)
   • Sound System: 5.1.2 channel
   • Power Supply: 100 - 240V AC, 50/60Hz
   • Soundbar Output Power: 340W
   • Surround Speaker Output Power: 2x 40W
   • Subwoofer Output Power: 300W
   • Soundbar Transducers: 3x racetrack drivers, 3x 0.75” tweeters, 2x 2.75” up-firing full-range drivers
   • Surround Speaker Transducer: 1x racetrack driver
   • Subwoofer Transducer: 10” driver
   • Networked Standby Power: < 2.0W
   • Operating Temperature: 0°C - 45°C
   • Detachable Speaker Battery Life: Up to 10 hours

2. HDMI Specifications:

   • HDMI Video Input: 1
   • HDMI Video Output (with eARC): 1
   • HDMI HDCP Version: 2.3
   • HDR Pass-through: HDR10, Dolby Vision

3. Audio Specifications:

   • Frequency Response: 35Hz - 20kHz
   • Audio Inputs: Optical, Bluetooth, USB (playback in US version only)

4. USB Specifications:

   • USB Port: Type A
   • Supported File Format: MP3
   • MP3 Codec: MPEG 1/2/2.5 Layer 3
   • MP3 Sampling Rate: 16 - 48 kHz
   • MP3 Bitrate: 80 - 320 kbps

5. Wireless Specifications:

   • Bluetooth Version: 5.0
   • Bluetooth Profile: A2DP 1.2, AVRCP 1.5
   • Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
   • 2.4G Wi-Fi Transmitter Frequency Range: 2412 - 2472MHz
   • 2.4G Wi-Fi Transmitter Power: < 20dBm
   • 5G Wi-Fi Transmitter Frequency Range: 5.15 - 5.35GHz, 5.47 - 5.725GHz, 5.725 - 5.825GHz
   • 5G Wi-Fi Transmitter Power: Varies by range

6. Dimensions and Weight:

   • Main Soundbar Dimensions (W x H x D): 884 x 56 x 120 mm
   • Detachable Surround Speaker Dimensions (each): 145 x 56 x 120 mm
   • Subwoofer Dimensions (W x H x D): 305 x 440.4 x 305 mm
   • Soundbar Weight: 3.4 kg
   • Detachable Surround Speaker Weight (each): 0.65 kg
   • Subwoofer Weight: 10 kg
   • Packaging Dimensions (W x H x D): 1000 x 375 x 475 mm
   • Packaging Weight: 18.9 kg

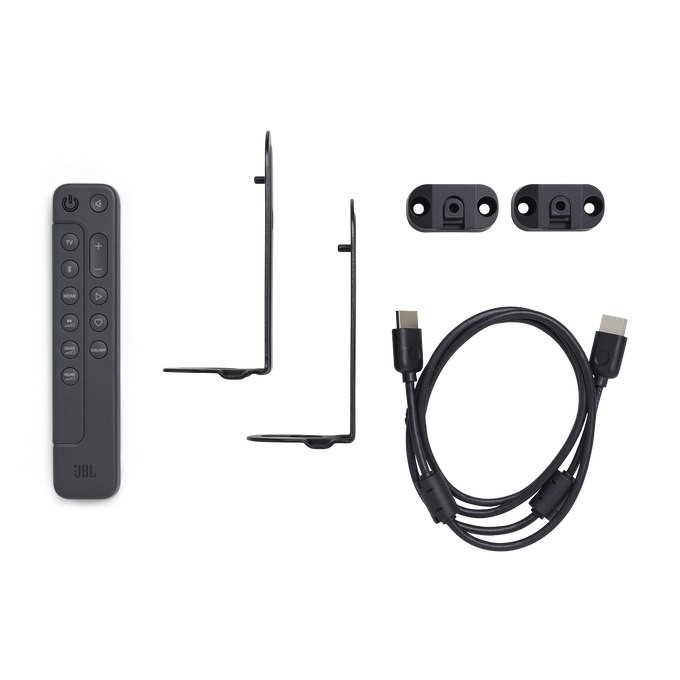

In the Box:

• Main soundbar
• Detachable wireless surround speakers (2)
• Wireless subwoofer
• Remote control with 2x batteries
• Power cords (up to 8 depending on region)
• HDMI cable
• Wall-mount brackets and screws
• Quick start guide
• Safety instructions and warranty card
• Wall mount template
