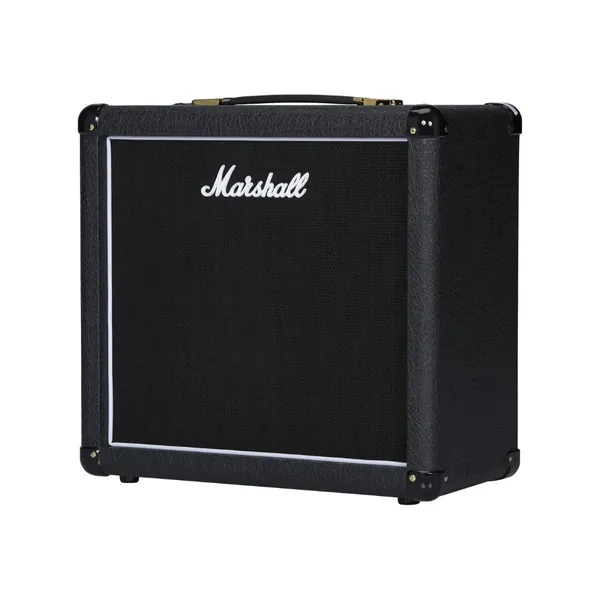

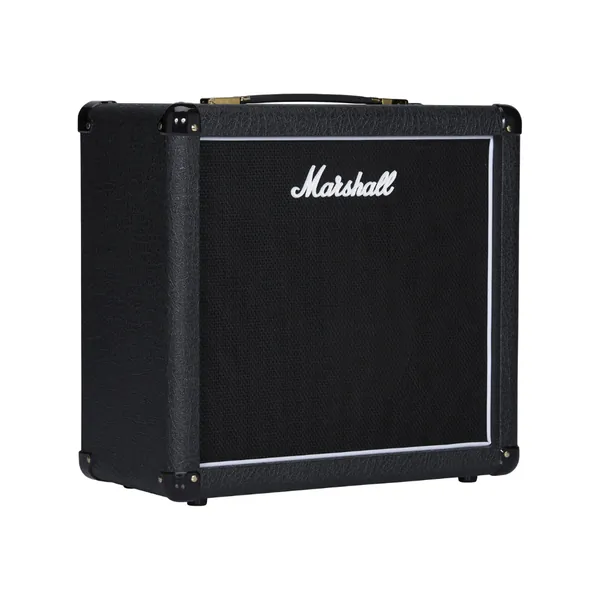

Marshall SC112 Studio Classic 70 Watt 1x12 Extension Cabinet

4x12" mono/stereo switching facilities
To ensure maximum flexibility, some of our 4x12" cabinets boast a mono/stereo switching system on the back. When 'stereo' mode is selected, the
cabinet is split into two 8 'halves' for use with a stereo amp. When 'mono' is selected you are offered two different impedance inputs (4 or 16 ) to
choose from. Always ensure you select the correct one to match the impedance of your amplifier and never use both inputs at the same time when the cabinet is in 'mono' mode.

2x12" stereo selection facilities
Some of our 2x12" cabinets are fitted with a mono/ stereo selection plate on the back. This enables you to split the cabinet into two halves for use with a
stereo set-up if you desire.
Mono usage: Use the input marked mono, the impedance of which is clearly indicated above the jack.
Stereo usage: Use both inputs. Once again the impedance of each is clearly marked.

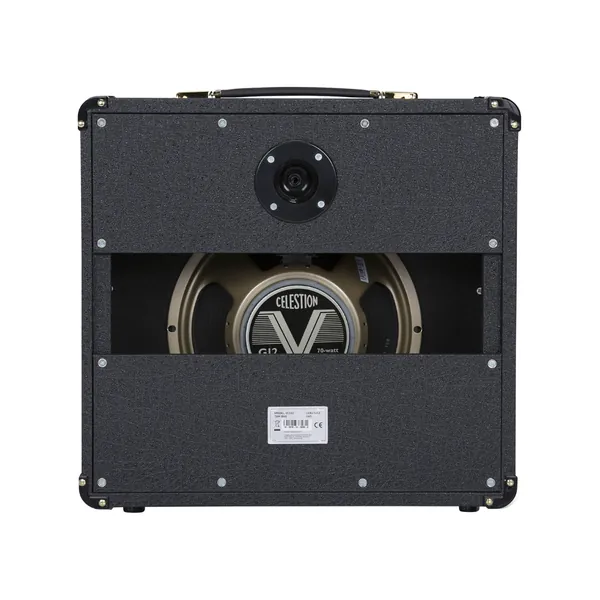

Single mono input
Some cabinets are fitted with a single mono input socket. With this cabinet the impedance and power rating are fixed.
Use a suitable speaker cable to plug your guitar amplifier into this socket. Ensure the impedance and power handling of the cabinet is compatible with your chosen amplifier

Specifications:

General
Model: Studio Classic 1x12 Cabinet

Electronics
Inputs: 1

Speakers
Speaker Configuration: 1x12"
Power Handling: 70W
Speaker Model: Celestion V-Type (16 , 70W)
Unit Impedance: 16

Unit Dimensions
Weight: 12.05 kg / 27 lbs
Width: 510 mm / 20.1"
Height: 480 mm / 18.9"
Depth: 250 mm / 9.9"

What's in the box
1x SC112
1x Power Cable
1x User Guide
