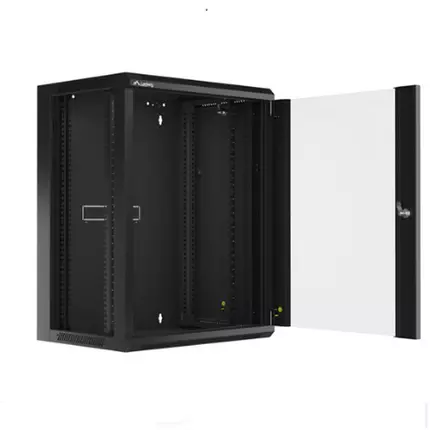

R&M Cabinet Wall Mount 19" 15U 600x600 FGD R860050

Wall mount, single section cabinet is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport. In addition, parcel includes additional accessories for rail mounts, M6 cage nuts and blank entry panels. Features: Cabinet type: Wall mount Body color: Black Height: 15U Cabinet dimensions (W x D x H): 600x600x774 mm Height (top panel - bottom panel): 767 mm Height (top panel - ground including screws): 774 mm Internal width spacing between rack rails: 450 mm Width of the spacing between holes of rack rails: 475 mm External width spacing between rack rails: 500 mm Maximum mounting depth: 529.5 mm Loading capacity: max. 60 KG Degree of protection: IP20 Doors type: Temper glass Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI Material: High grade cold rolled steel, powder coated Fan mounting slots: Yes, 120mm, 110V or 230V Glass thickness: 5.0 mm Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm Cable entry panel: Top, Bottom
