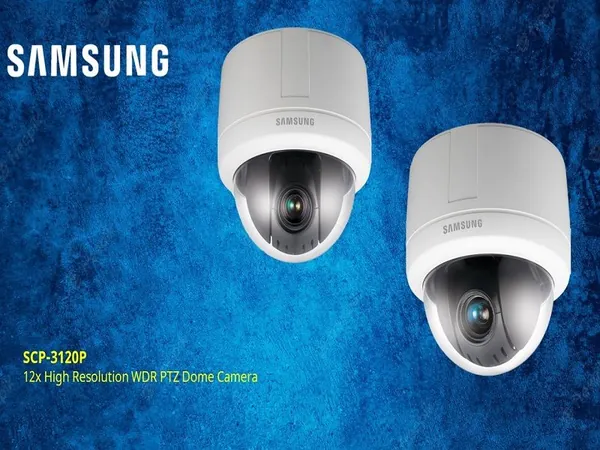

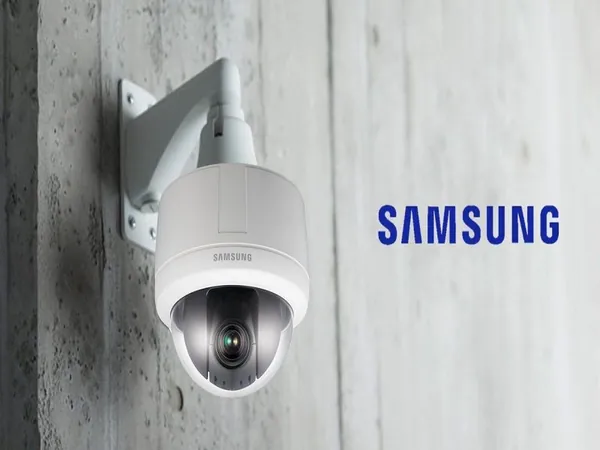

Samsung SCP-3120P 12X WDR PTZ Dome Camera

Video
Imaging Device 1/4" Ex-view HAD CCD (Double scan)
NETD 2 : 1 Interlace
Pixel Size Color : 600TV lines, B/W : 700TV lines
Min. Illumination 0.7Lux@F1.65 (50IRE), 0.001Lux (Sens-up, 512x)
Video Out CVBS : 1.0 Vp-p / 75? composite
Lens
Focal Length (Zoom Ratio) 3.6 ~ 44.3mm
Max. Aperture Ratio 1 : 1.65(Wide) ~ 2.01(Tele)
Angular Field of View H : 54.44°(Wide) ~ 4.64°(Tele) / V : 41.42°(Wide) ~ 3.52°(Tele)
Min. Object Distance 1m (3.28ft)
Lens Type N/A
Mount Type N/A
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 360° Endless
Pan Range 650°/sec
Pan Speed 0.05°/sec ~ 120°/sec (Proportional zoom ratio)
Tilt Range -5° ~ 185°
Tilt Speed 650°/sec
Rotate Range 0.05°/sec ~ 120°/sec (Proportional zoom ratio)
Sequence 255
Operational
Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Privacy Masking Pelco-C (Coaxitron)
Gain Control N/A
White Balance N/A
LDC Off / On
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage 24V AC ±10%
Mechanical
Color / Material Ivory
RAL Code Plastic (Dome cover : Clear)

What's in the box
1X Camera
1X Fitting Plat
1X Manual Guide Book
