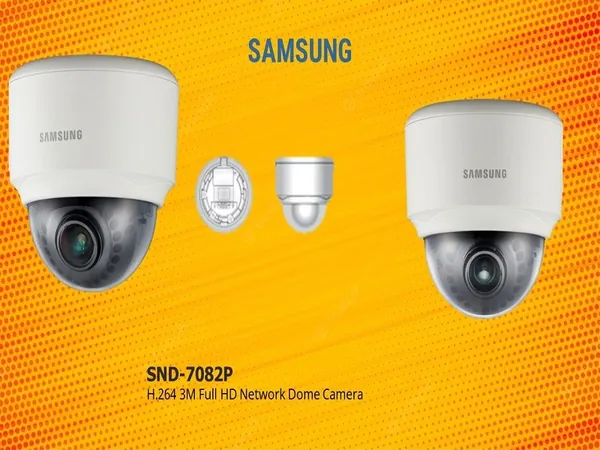

SAMSUNG SND-7082P H.254 Full HD Network Dome Camera

Specifications
Video
Imaging Device 1/3" 3.1M PS CMOS
Total Pixels 2,064 (H) x 1,578 (V)
Effective Pixels 2,052 (H) x 1,536 (V)
Scanning System Progressive
Min. Illumination Color : 0.7 Lux (F1.2, 50IRE), 0.011 Lux (Sens up 60X) B/W : 0.07 Lux (F1.2, 50IRE), 0.001 Lux (Sens up 60X)
S / N Ratio 50dB
Video Out CVBS : 1.0 Vp-p / 75? composite, 704 x 480(N), 704 x 576(P), for installation
LENS
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 87.3° (Wide) ~ 31.2° (Tele), V : 64.5° (Wide) ~ 23.4° (Tele)
Min. Object Distance 0.5m (1.64ft) Focus Cotrol Manual, Simple focus, Day&Night
Lens Type DC Auto Iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan Range 0° ~ 355°
Tilt Range 0° ~ 90°
Rotate Range 0° ~ 355°
OPERATIONAL
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W / External
Backlight Compensation Off / BLC / HLC
Wide Dynamic Range Off / On (96dB) 3M Mode : 20fps, 2M Mode : 30fps
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D Noise Filter) (Off / On)
Motion Detection Off / On (4 Rectangular zones)
Privacy Masking Off / On (1ea 4 Point Polygonal + 16ea Rectangular zones)
Sens-up (Frame Integration) Off / Auto (2x~60x)
Gain Control Off / Low / Midium / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Audio detection, Face detection, Scene change, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O Digital 1/1
Alarm Triggers Motion detection, Video analytics, Sensor input
Alarm events File upload via FTP, E-Mail / Notification via E-Mail, TCP / local storage (SD/SDHC) recording at Network disconnected
External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 Part 10/AVC), MJPEG
Resolution
3M Mode - 2048 x 1536 / 1920 x 1080 / 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 720 / 1024 x 768
800 x 600 / 800 x 450 / 640 x 480 / 640 x 360 / 320 x 240 / 320 x 180
2M Mode - 1920 x 1080 / 1280 x 1024 / 1280 x 960 / 1280 x 720 / 1024 x 768 / 800 x 600 / 800 x 450
640 x 480 / 640 x 360 / 320 x 240 / 320 x 180
Max. Framerate
3M Mode - H.264 : Max 20fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 20 fps
1024 x 768 ~ 1920 x 1080 - 15 fps / 2048 x 1536 - 10 fps
2M Mode - H.264 : Max 30fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 30 fps
1024 x 768 ~ 1920 x 1080 : 15 fps
Smart Codec Yes (Area based method)
Video Quality Adjustment H.264 : Compression level, Target bitrate level control / MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR / MJPEG : VBR
Streaming Capability Multiple streaming (Up to 6 profiles)
Audio I/O Mic/Line in , Line out
Audio Compression Format G.711 u-law, G.726 (16Kbps, 24Kbps, 32Kbps, 40Kbps)
Audio Communication Bi-directional
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP,
IGMP, SNMPv1/ v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP
Security HTTPS (SSL) login authentication, Digest login authentication, IP address filtering,
User access log, 802.1X authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot SD / SDHC memory slot
ONVIF Conformance Yes
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish,
Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Supported Browser : Internet explorer 7.0 or higher, Firefox 9.0 or higher, Chrome 15.0 or higher, Safari 5.1 or higher
Central Management Software NET-i viewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / 20% ~ 80% RH
Electrical
Input Voltage / Current DC 12V, PoE (IEEE802.3af)
Power Consumption Max. 9.0W (DC 12V, PoE (class3)
Mechanical
Color / Material Body : Ivory / Plastic
Dimension (WxH) SND-7082 : Ø133 x 129.4 mm (Ø5.24" x 5.09")/ SND-7082F : Ø159.9 x 125 mm (Ø6.3" x 4.92") (Flush mounting type)

What's in the box
1X Camera
1X Manual Guide Book
1X Cable
