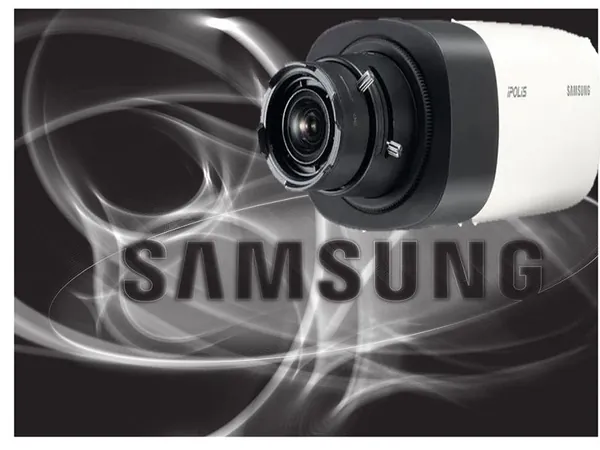

SNB-5003P 1.3M WDR Network Box Camera

Key Features
• Max. 1.3M (1280 x 1024) resolution
• 16 : 9 HD (720p) resolution support
• H.264, MPEG-4, MJPEG multiple codec, Multiple streaming
• WDR (130dB), Enhanced DIS, Defog, P-Iris
• Simple focus, Day & Night (ICR) : SNB-5004
• SD/SDHC/SDXC memory slot, Multi-crop streaming
• PoE, Bi-directional audio support

TECHNICAL SPECIFITION

VIDEO
Imaging Device 1/3" 1.3M CMOS
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive
Min. Illumination
Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE)
0.008Lux (1/30sec, F1.2, 30IRE)
B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
0.002Lux (1/30sec, F1.2, 30IRE)
Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE)
0.008Lux (1/30sec, F1.2, 30IRE)
B/W : 0.05Lux (1/30sec, F1.2, 50IRE)
0.008Lux (1/30sec, F1.2, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75? composite, 704 x 480(N), 704 x 576(P), for installation, DIP connector type
LENS
Focus Control
Simple focus/ Manual
Remote control via network, Button control
(Manual, Simple focus, Day & Night)
Manual
Lens Type Manual / DC auto iris, P-Iris
Mount Type C / CS
OPERATIONAL
Camera Title Off / On (Displayed up to 40 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule Auto (Electrical) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 130dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
CAR (Color Aberration Reduction) Off / Low / Middle / High
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,Audio detection, Face detection
Alarm I/O Input 1ea / Output 1ea
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin
Alarm Triggers Motion detection, Tampering,Audio detection, Face detecton, Video analytics, Network disconnection
Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Localstorage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC),MJPEG
Resolution 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate H.264 :Max. 60fps at all resolutions,MJPEG :Max. 30fps at all resolutions
Video Quality Adjustment H.264 : Compression level, Target bitrate level control,MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR,MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in),Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm stereo mini jack)
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2),ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP addressfiltering, User accesslog, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage SD/SDHC/SDXC
Motion imagesrecorded in the SDXC/SDHC/SD memory card can be downloaded
Application Programming Interface ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer
Supported OS :Windows XP / VISTA / 7 / 8 / 8.1,MAC OS X 10.7
Supported Browser :Microsoft Internet Explorer (Ver. 11 ~ 8)
Mozilla Firefox (Ver. 19 ~9) * Windows only
Google Chrome (Ver. 25 ~ 15) * Windows only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Lessthan 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
ELECTRICAL
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class3)
Power Consumption Max. 12.5W (24V AC, 50 ~ 60Hz),Max. 10.5W (12V DC),Max. 12.0W (PoE, Class3)
MECHANICAL
Color / Material Black, Ivory / Aluminium, Plastic

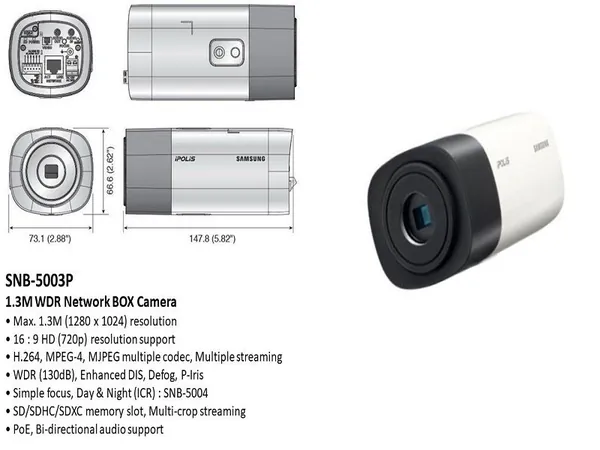

Dimensions (WxHxD) 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82") 73.1 x 66.6 x 136.2mm (2.88" x 2.62" x 5.36")

What's in the box
1X Camera
1X Manual Book
1X CD Drive
1X CD Instruction
