Console Type
• Model: Xbox Series S
• Version: Digital Edition (no disc drive)
Processor
• CPU: Custom AMD Zen 2, 8 cores at 3.6 GHz (3.4 GHz with SMT)
• GPU: AMD RDNA 2, 4 TFLOPS, 20 CUs at 1.565 GHz
Memory & Storage
• RAM: 10 GB GDDR6
• Storage: 512 GB NVMe SSD (expandable via proprietary expansion cards)
• Available Storage: Approx. 364 GB usable
Performance
• Target Resolution: Up to 1440p native
• Frame Rate: Up to 120 FPS
• Ray Tracing: Hardware-accelerated DirectX Raytracing
Video & Audio Output
• HDMI: 2.1 output (supports 4K UHD upscaling)
• Audio: Dolby Atmos and DTS:X support
• HDR: HDR10 support
Connectivity
• Wi-Fi: 802.11ac Dual-band (2.4 GHz and 5 GHz)
• Ethernet: 1 Gbps Ethernet port

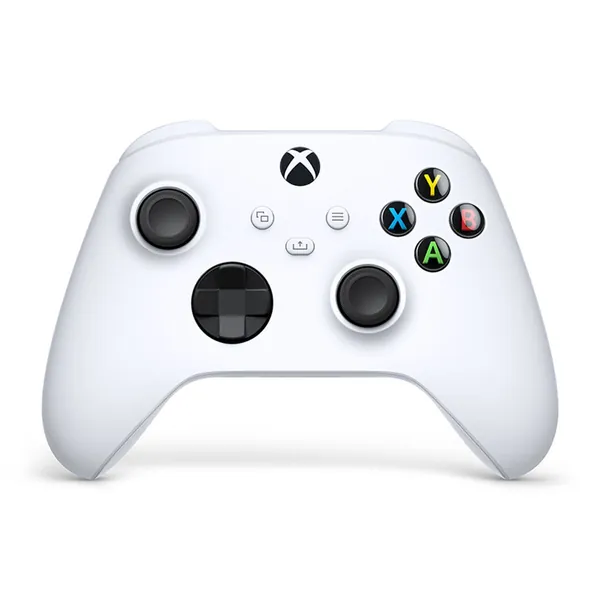

• Bluetooth: For accessories (controller, headphones)

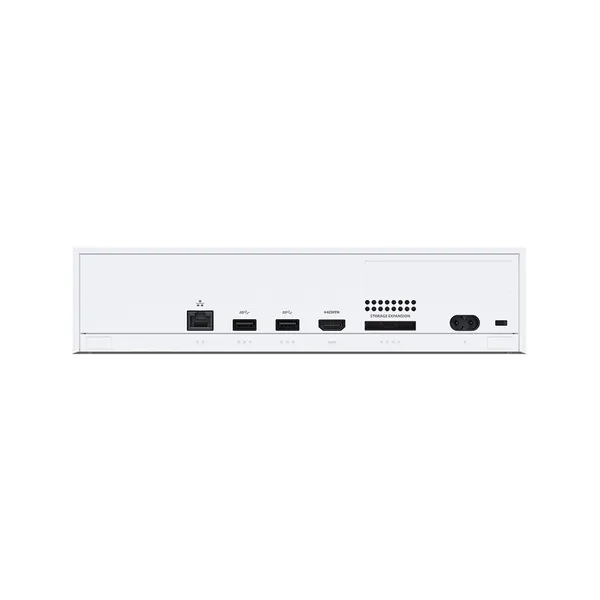

Ports
• USB: 3x USB 3.1 Gen 1 (1x front, 2x rear)
• Storage Expansion Slot: For Seagate proprietary expansion card
• HDMI Out: 1x HDMI 2.1
• Power: External power supply
Dimensions & Weight
• Size: 275 mm x 151 mm x 63.5 mm
• Weight: Approx. 1.93 kg
Other Features
• Backward Compatibility: Supports thousands of Xbox One, Xbox 360, and original Xbox games
• Quick Resume: Resume multiple games quickly
• Digital Store: Xbox Game Pass and Microsoft Store for digital downloads only
• Cooling: Quiet cooling system with internal fan
