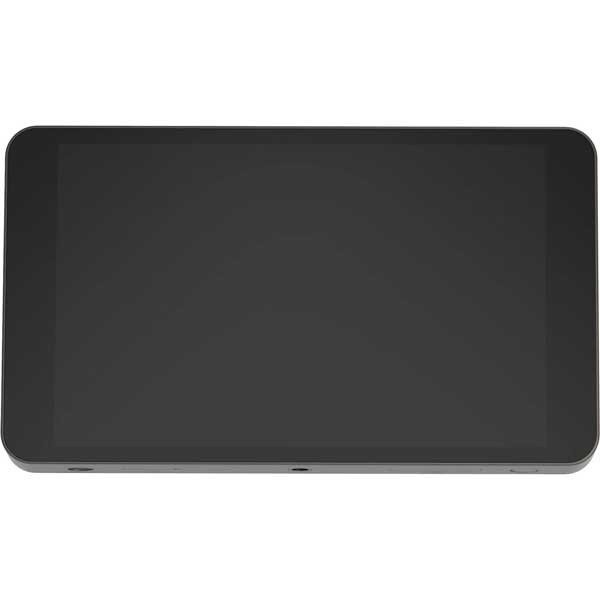

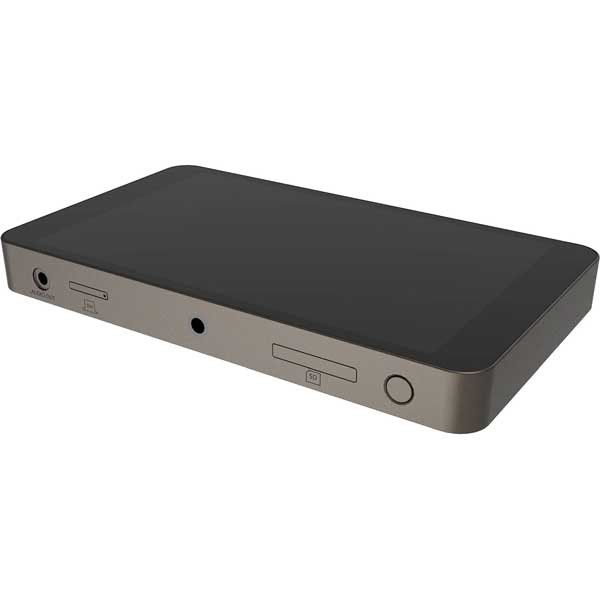

YoloLiv YoloBox Live Streaming Encoder

Dimensions and Weight:

• Height: 19.5 mm
• Width: 107 mm
• Length: 185 mm
• Weight: 480 g

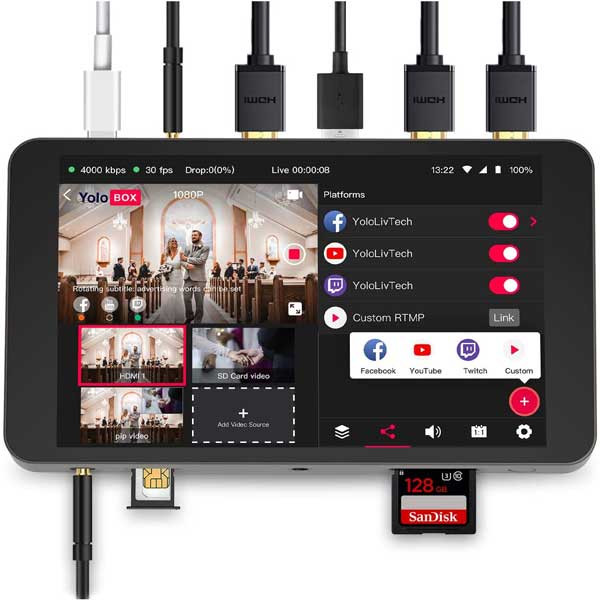

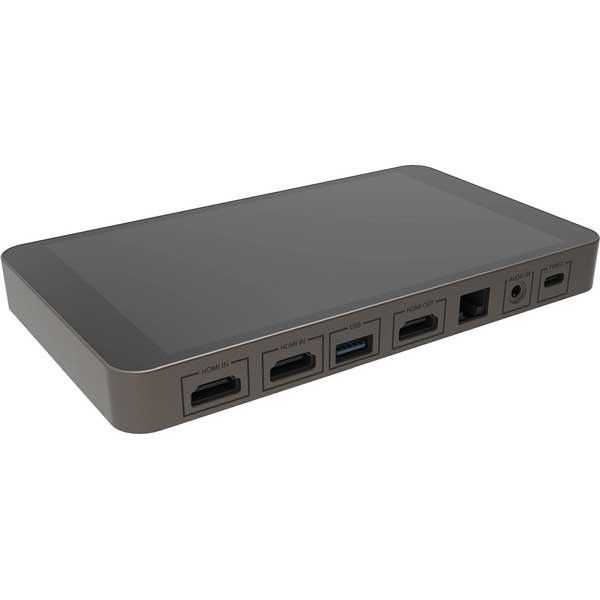

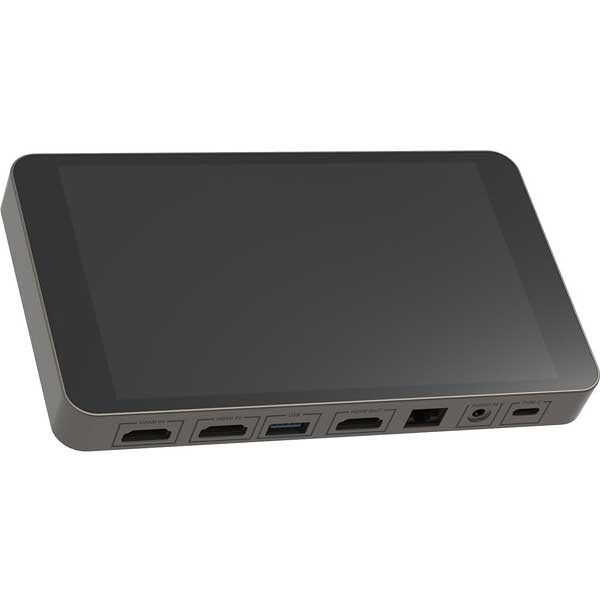

Input/Output Ports:

• Video Inputs:
  • 1 x HDMI IN
  • 1 x USB IN (Note: Some USB webcams may only support video capture)
• Video Output:
  • 1 x HDMI OUT
• Audio:
  • 1 x AUDIO IN (3.5 mm) for lavalier microphones or mixers
  • 1 x AUDIO OUT (3.5 mm) for headphone monitoring
• Network:
  • 1 x Ethernet port
  • 1 x SIM Card Slot for 4G LTE connectivity

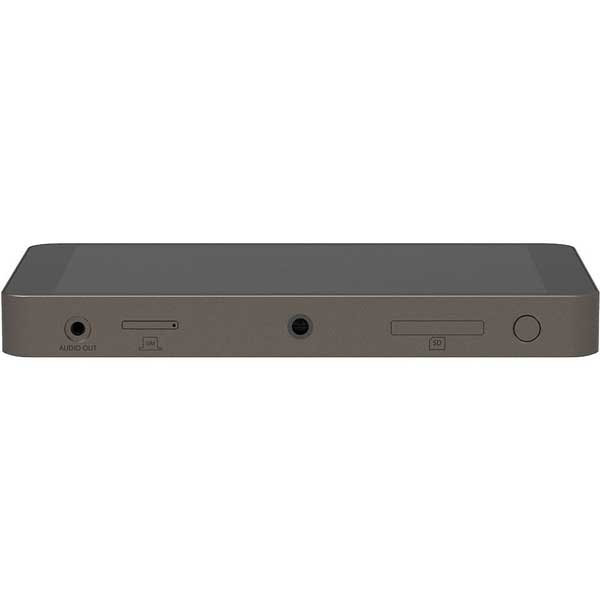

• Other Ports:
  • 1 x USB-C for power
  • 1 x SD Card Slot for video sources (video & PDF) and recording

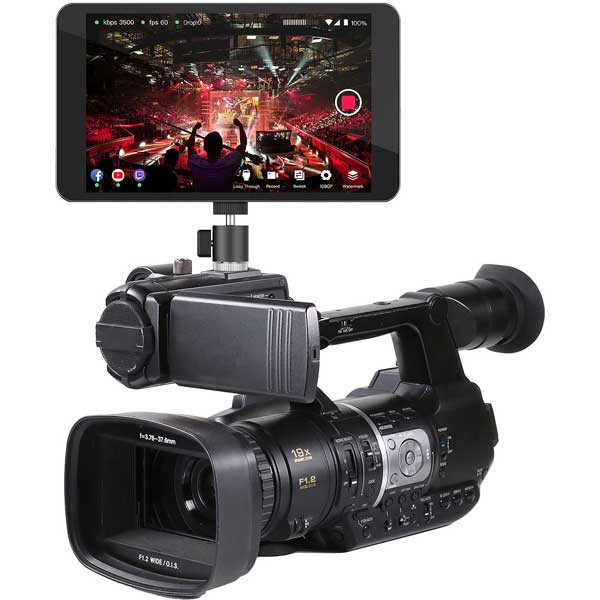

  • 1 x 1/4" Screw Hole for mounting the YoloBox with a camera

Video and Audio Specifications:

• Video Encoding Format: H.264
• Audio Encoding Format: AAC (48 kHz)
• Video Recording Format: MP4
• Audio Input Formats: 32 kHz, 44.1 kHz, 48 kHz, 16-bit
• Video Input Formats Supported: 1080i, 720p, 1080p
• Live Broadcast Resolutions: 480p, 720p, 1080p

Storage:

• SD Card Type: Supports SD cards up to 128 GB in FAT32 format

Network Connectivity:

• Wi-Fi: Supports 2.4 GHz and 5 GHz bands
• 4G LTE: Supports various frequency bands depending on the region:
  • North America (US/Canada/Mexico): B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
  • Other Regions (EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand): B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
• SIM Card Size: Standard SIM Card

Power:

• Power Interface: USB-C, supports Quick Charge 3.0
• Battery Capacity: 3.7V, 5200 mAh

Operating Environment:

• Operating Temperature: -10°C to 40°C
• Storage Temperature: 5°C to 40°C
