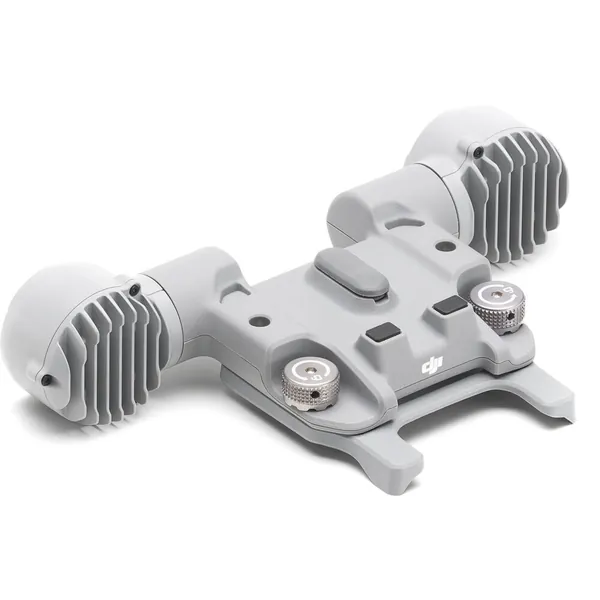

DJI Matrice 4 Series AL1 Spotlight

DJI Matrice 4 Series AL1 Spotlight – Professional Aerial Illumination System

Elevate your nighttime operations with the DJI Matrice 4 Series AL1 Spotlight, a high-intensity, intelligent lighting solution designed for seamless integration with the Matrice 4 series drones. Engineered for search and rescue, security patrol, and industrial inspection, this spotlight delivers unmatched brightness, precision control, and operational reliability in the most demanding low-light environments.

Key Features

• Ultra-Bright Illumination: Delivers up to 10,000 lumens of powerful, wide-angle light, effectively illuminating large areas from a safe distance.
• Intelligent Gimbal Tracking: Built-in pan and tilt gimbal automatically locks onto and tracks subjects, keeping them centered in the beam for hands-free operation.
• Adjustable Beam Angle: Offers both wide flood and narrow spot modes (10° to 60°), allowing operators to adapt to diverse mission requirements—from broad area coverage to focused target identification.
• Real-Time Zoom Control: Smooth, remote zoom functionality enables instant beam width adjustments directly from the DJI Pilot 2 remote controller.
• Advanced Heat Dissipation: Integrated thermal management system ensures consistent performance during extended missions, preventing overheating and maintaining maximum brightness.
• Rugged & Weather-Resistant: IP54-rated dust and water resistance ensures reliable operation in rain, fog, and dusty conditions.
• Quick-Release Mount: Tool-free attachment and detachment from the Matrice 4 series payload bay for rapid deployment and storage.

Technical Specifications

• Compatibility: DJI Matrice 4E, Matrice 4T, Matrice 4 Pro
• Brightness: Up to 10,000 lumens (continuous)
• Beam Angle: 10° (spot) to 60° (flood), adjustable in flight
• Light Source: High-power LED array (50,000-hour lifespan)
• Gimbal Range: Pan: ±90° | Tilt: +30° to -90°
• Tracking Mode: Automatic subject lock with visual AI
• Weight: 580g (1.28 lbs)
• Power Supply: Direct from drone battery (no external battery required)
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Ingress Protection: IP54 (dust and water splash resistant)
• Dimensions: 130 × 110 × 160 mm (5.1 × 4.3 × 6.3 in)

Key Benefits

• Enhanced Mission Success: Provides critical visibility for night-time search and rescue, enabling teams to locate missing persons or assets faster and more accurately.
• Improved Operational Safety: Illuminates hazardous environments (e.g., power lines, construction sites, disaster zones) without exposing personnel to danger.
• Reduced Pilot Workload: Automatic subject tracking frees the pilot to focus on flight path and overall mission strategy, rather than manual light control.
• Extended Flight Time: Efficient power draw from the drone’s main battery allows for longer operational windows without payload swaps.
• Versatile Application: Ideal for law enforcement, firefighting, wildlife monitoring, infrastructure inspection, and event security.
• Professional-Grade Reliability: Built to withstand harsh field conditions, ensuring dependable performance when it matters most.
