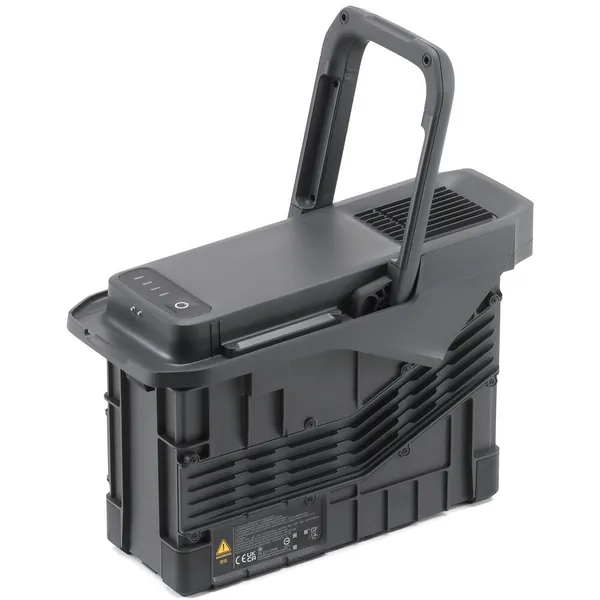

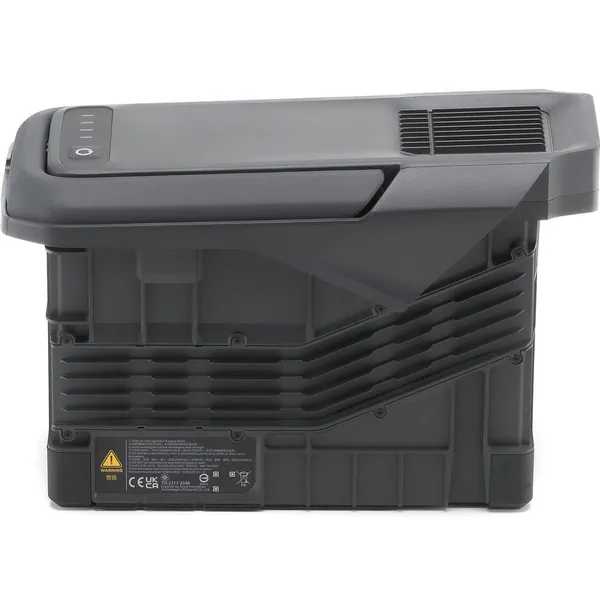

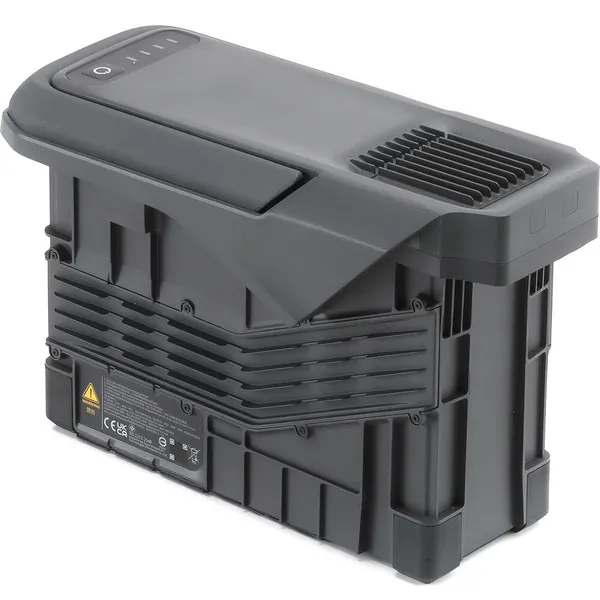

DJI Matrice 400 TB100 Intelligent Flight Battery

Product Overview

Unlock the full potential of your DJI drone with the DJI TB100 Intelligent Flight Battery, engineered for exceptional performance, reliability, and extended flight times. Designed to meet the rigorous demands of professional aerial imaging and industrial applications, this high-capacity battery ensures your drone operates at peak efficiency in any environment.

Key Technical Specifications

• Battery Type: LiPo 6S (Lithium Polymer, 6 Cells in Series)
• Capacity: 5930 mAh
• Voltage: 22.8 V (Nominal)
• Energy: 135.2 Wh
• Weight: Approximately 1.15 kg (2.54 lbs)
• Charging Temperature Range: 5°C to 40°C (41°F to 104°F)
• Max Charging Power: 180 W
• Compatible Drones: Designed for DJI Matrice 300 RTK and Matrice 350 RTK

Key Features

• Intelligent Battery Management System (BMS): Real-time monitoring of voltage, temperature, and cell balance for optimized performance and safety.
• Self-Heating Technology: Automatically activates in low-temperature conditions (below 5°C) to maintain optimal discharge performance.
• IP54 Protection Rating: Dust and water-resistant housing ensures reliable operation in challenging weather conditions.
• Advanced Safety Features: Overcharge, over-discharge, short-circuit, and over-temperature protection for peace of mind.
• Quick-Release Design: Tool-free installation and removal, enabling rapid battery swaps during critical missions.
• LED Status Indicator: Multi-color LEDs provide instant visual feedback on battery level, health, and charging status.

Benefits

• Extended Flight Time: Achieve up to 55 minutes of flight time (with no payload), maximizing productivity for surveying, mapping, and inspection tasks.
• Consistent Performance in Harsh Climates: Self-heating and intelligent management ensure reliable power delivery in temperatures as low as -20°C (-4°F).
• Reduced Downtime: Fast charging capability (up to 180W) and modular design allow for quick turnaround between missions.
• Enhanced Safety and Durability: IP54 rating and robust BMS minimize the risk of battery failure, protecting your investment and ensuring mission success.
• Cost-Effective Operations: Long lifecycle (up to 200 charge cycles) and smart maintenance alerts reduce total cost of ownership.
• Seamless Integration: Perfectly matched with DJI’s ecosystem, ensuring plug-and-play compatibility and optimal drone performance.

Why Choose the DJI TB100?

The DJI TB100 Intelligent Flight Battery is not just a power source—it’s a smart, rugged, and high-performance component that elevates your drone operations. Whether you’re conducting critical infrastructure inspections, precision agriculture mapping, or search and rescue missions, this battery delivers the reliability and endurance you need to get the job done right.
