DJI Dock 3

Product Overview

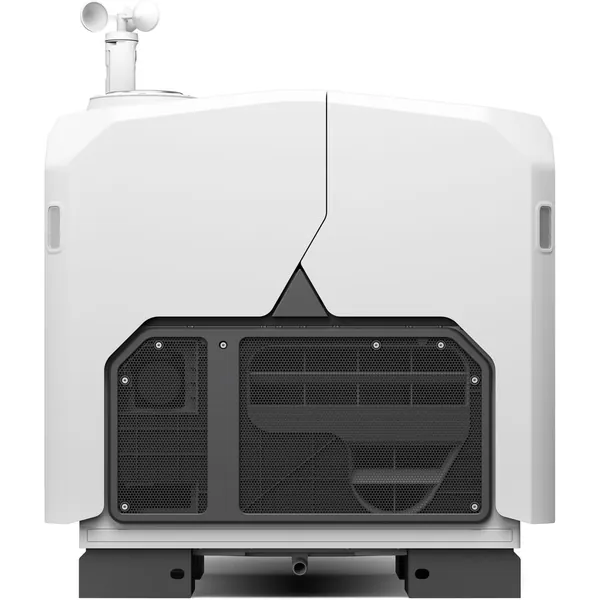

The DJI Dock 3 is a cutting-edge, fully autonomous drone docking station designed for continuous, remote operations in demanding environments. Engineered for the DJI Matrice 4D/4E series, it enables 24/7 aerial monitoring, inspection, and surveillance without human intervention, revolutionizing industries from public safety to infrastructure management.

Key Features

• Fully Autonomous Operations – Supports automated drone launch, landing, battery swapping, and data upload, requiring zero on-site personnel.
• All-Weather Durability – IP56-rated weatherproof design operating in temperatures from -30°C to 55°C, with built-in dehumidification and heating systems.
• Rapid Deployment – Drone takes off within 2 minutes of receiving a mission command, enabling real-time response to critical events.
• High-Precision Landing – RTK-based centimeter-level landing accuracy ensures reliable docking even in strong winds or low visibility.
• Advanced Security – Features encrypted data transmission, AES-256 data protection, and physical tamper alarms for maximum operational security.
• Smart Power Management – Integrated battery charging and storage system with health monitoring, extending battery lifespan by up to 30%.
• Multi-Mission Support – Compatible with DJI FlightHub 2 for centralized fleet management, mission scheduling, and live streaming.

Technical Specifications

• Compatible Drones: DJI Matrice 4D, DJI Matrice 4E
• Dimensions: 1,200 mm × 1,200 mm × 1,500 mm (when deployed)
• Weight: 85 kg (including battery modules)
• Operating Temperature: -30°C to 55°C (-22°F to 131°F)
• Weatherproof Rating: IP56
• Power Supply: AC 100-240V, 50/60 Hz, 1,500W max
• Battery Charging Time: 25 minutes (full charge for one drone battery)
• Data Transmission: 4G/5G cellular, Wi-Fi 6, Ethernet (RJ45)
• Landing Accuracy: ±1 cm (RTK-enabled)
• Wind Resistance: Up to 12 m/s during landing operations
• Storage Capacity: Supports up to 20 drone battery cycles per day
• Security: AES-256 encryption, physical lock, tamper detection

Benefits

• 24/7 Unmanned Operations – Eliminates the need for on-site pilots, reducing labor costs by up to 70% while enabling continuous monitoring.
• Enhanced Safety – Removes human risk in hazardous inspections (e.g., power lines, oil rigs, disaster zones) through fully remote control.
• Increased Efficiency – Automates routine patrols, inspections, and data collection, allowing teams to focus on analysis and decision-making.
• Scalable Fleet Management – Deploy multiple Dock 3 units across vast areas, managed from a single dashboard for uniform coverage.
• Reduced Downtime – Rapid battery swapping and weather-resistant design ensure minimal operational interruptions, even in extreme conditions.
• Actionable Insights – Real-time data streaming and AI-powered analytics (via DJI FlightHub 2) enable instant threat detection and informed responses.
• Cost-Effective Long-Term Use – Durable construction and smart battery care reduce maintenance and replacement costs over the system’s lifecycle.
