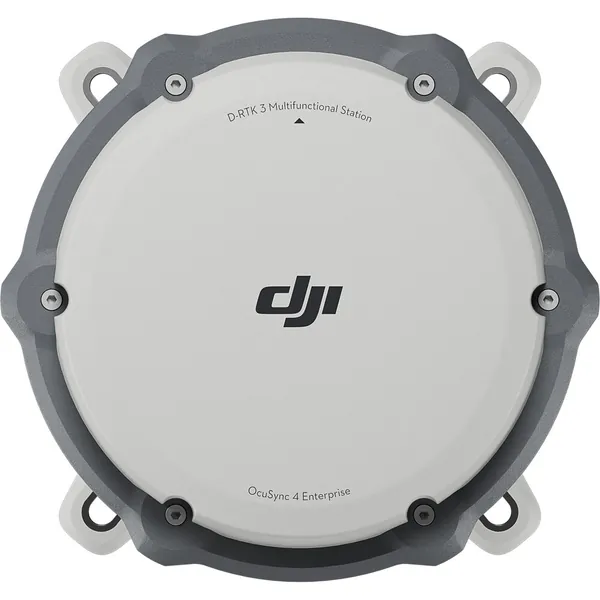

DJI D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station – Redefining Precision and Versatility

Elevate your aerial operations with the DJI D-RTK 3 Multifunctional Station, a cutting-edge solution designed for professionals demanding centimeter-level accuracy, robust connectivity, and seamless integration. Combining a high-precision GNSS receiver, a powerful relay station, and an advanced base station into one compact unit, the D-RTK 3 unlocks new possibilities for surveying, mapping, agriculture, and inspection workflows.

Key Features

• Triple-Mode Functionality: Operates as a GNSS base station, relay station, or portable receiver—adapting to diverse mission requirements without extra hardware.
• Centimeter-Level Positioning: Supports GPS, GLONASS, Galileo, BeiDou, and QZSS constellations, delivering RTK accuracy of ≤2.5 cm + 1 ppm (horizontal) and ≤5 cm + 1 ppm (vertical).
• Extended Communication Range: Built-in relay mode extends control and video transmission range up to 15 km (FCC), enhancing operational flexibility in complex environments.
• IP67 Weather Resistance: Rugged, dustproof, and waterproof design ensures reliable performance in rain, dust, and extreme temperatures (-20°C to 50°C).
• Integrated 4G LTE & Wi-Fi: Enables real-time data streaming, network RTK corrections, and remote configuration via the DJI Pilot 2 app.
• High-Capacity Battery: Hot-swappable 5400 mAh battery provides up to 6 hours of continuous operation (base station mode), with fast charging support.
• Multi-Device Connectivity: Simultaneously supports up to 5 drones (e.g., Matrice 350/300 Series, Mavic 3E/3M) for collaborative missions.

Technical Specifications

• GNSS Channels: 184 channels (GPS L1C/A, L2C, L5; GLONASS L1, L2; Galileo E1, E5a, E5b; BeiDou B1I, B2I, B3I; QZSS L1, L2, L5)
• RTK Positioning Accuracy: Horizontal: 2.5 cm + 1 ppm RMS; Vertical: 5 cm + 1 ppm RMS
• Maximum Communication Range (Relay Mode): 15 km (FCC) / 8 km (CE) / 10 km (SRRC) / 8 km (MIC)
• Operating Frequency: 2.4 GHz & 5.8 GHz (dual-band)
• IP Rating: IP67 (with battery and covers installed)
• Battery Life: Up to 6 hours (base station mode), 4 hours (relay mode), 8 hours (receiver mode)
• Dimensions: 198 mm × 138 mm × 104 mm (without antenna)
• Weight: Approximately 1.5 kg (with battery and antennas)
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Benefits for Professionals

• Boost Surveying Efficiency: Eliminate the need for ground control points (GCPs) with real-time RTK corrections, reducing field time by up to 50%.
• Enhance Mission Safety: Relay mode ensures stable drone control and video feedback in obstructed areas (e.g., tunnels, valleys, or urban canyons).
• Simplify Logistics: One device replaces multiple tools—base station, relay, and receiver—cutting equipment costs and setup complexity.
• Future-Proof Investment: Firmware upgradable to support emerging GNSS signals and DJI ecosystem updates, ensuring long-term relevance.
• Optimize Team Collaboration: Connect multiple drones to a single D-RTK 3 for synchronized mapping, inspection, or agricultural spraying missions.

Experience unmatched precision and versatility with the DJI D-RTK 3 Multifunctional Station—the ultimate tool for professionals who demand the best in aerial data collection and control.
