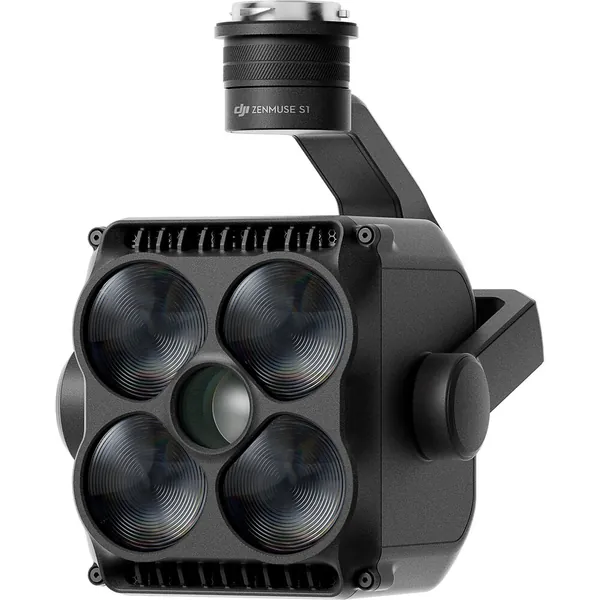

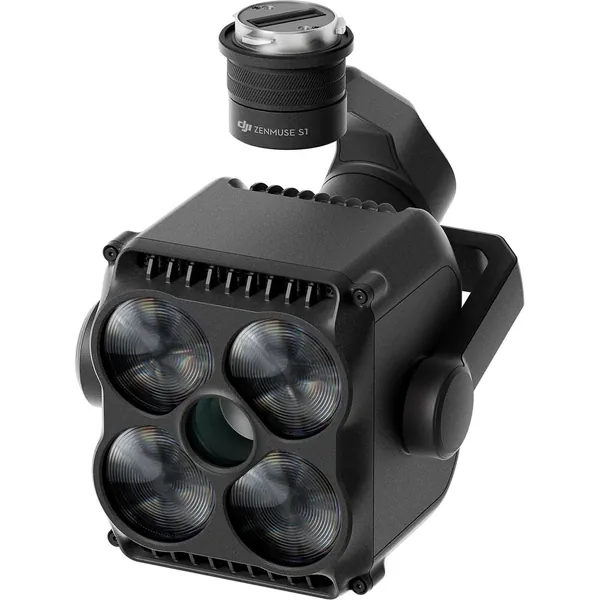

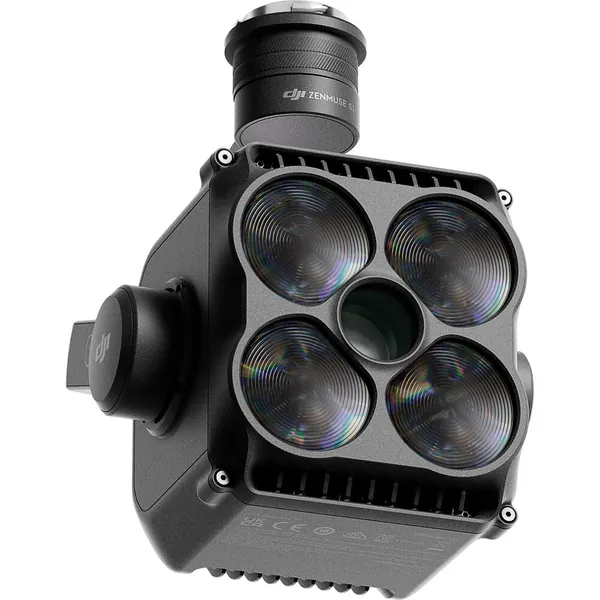

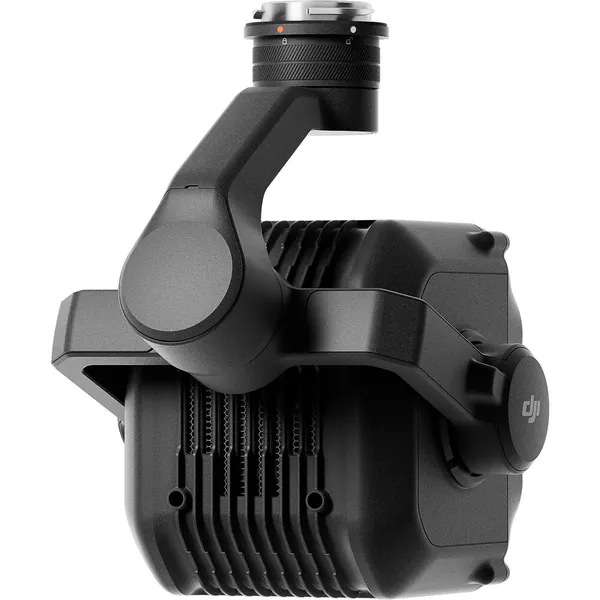

DJI Zenmuse S1 Spotlight

DJI Zenmuse S1 Spotlight – Professional-Grade Illumination for Aerial Operations

Elevate your night-time aerial missions with the DJI Zenmuse S1 Spotlight, a high-output, intelligent lighting solution designed for professional drone operators. Engineered to integrate seamlessly with DJI’s enterprise platforms, the S1 delivers unmatched brightness, precision control, and operational safety for search and rescue, public safety, inspection, and cinematography applications.

Key Features

• Ultra-Bright Illumination: Delivers up to 2,400 lumens of intense, focused light, ensuring clear visibility in complete darkness from distances up to 50 meters.
• Intelligent Tracking & Gimbal Control: Utilizes the Zenmuse gimbal’s 3-axis stabilization to automatically track and illuminate targets, keeping subjects centered even during dynamic drone movements.
• Adjustable Beam Angle: Offers a wide 30° to 60° beam angle range, allowing operators to switch between a concentrated spotlight and a broader floodlight for diverse mission requirements.
• Real-Time Manual Adjustment: Operate tilt and pan controls directly from the remote controller, enabling precise light direction without moving the aircraft.
• Durable & Weather-Resistant: Built with an IP44-rated housing, the S1 Spotlight withstands rain, dust, and challenging environmental conditions, ensuring reliable performance in the field.
• Hot-Swappable Design: Features a quick-release mount for easy installation and removal, allowing operators to swap payloads mid-mission without tools.

Technical Specifications

• Brightness: 2,400 lumens (max)
• Beam Angle: 30° – 60° (adjustable)
• Illumination Distance: Up to 50 meters (at 30° beam angle)
• Color Temperature: 5,700K (daylight white)
• Input Power: 12V – 17.4V DC (via aircraft battery)
• Dimensions: 145 mm x 105 mm x 90 mm
• Weight: 320 g (without mount)
• Ingress Protection: IP44
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Compatibility: DJI M300 RTK, M350 RTK, M30/M30T (with adapter)

Benefits for Your Operations

• Enhanced Situational Awareness: Illuminate critical areas during night-time search and rescue, allowing teams to locate targets faster and more safely.
• Improved Inspection Accuracy: Provide consistent, shadow-free lighting for bridge, power line, and infrastructure inspections, revealing defects invisible under ambient light.
• Increased Public Safety: Support law enforcement and firefighting missions with persistent, directional lighting that deters threats and guides ground personnel.
• Versatile Cinematography: Achieve professional-grade lighting effects for aerial filmmaking, enabling dramatic night shots with full creative control.
• Mission Continuity: The hot-swappable design minimizes downtime, allowing rapid payload changes to adapt to evolving mission demands.

Note: The DJI Zenmuse S1 Spotlight is a dedicated accessory for select DJI enterprise drones. Ensure compatibility with your aircraft model before purchase.
