DJI Zenmuse H30T

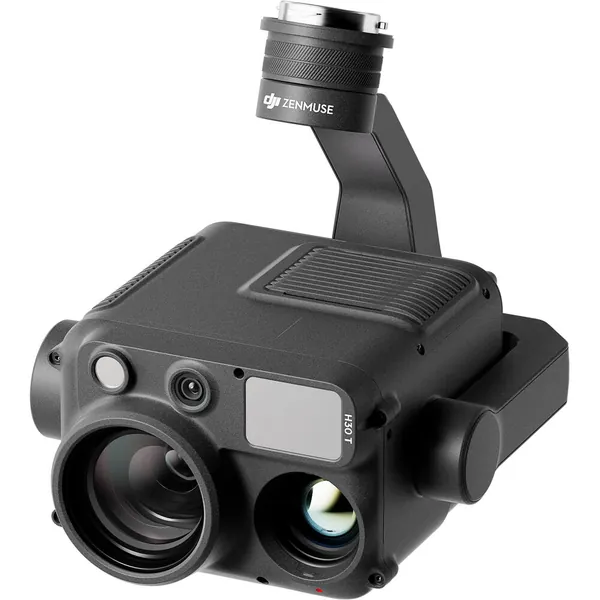

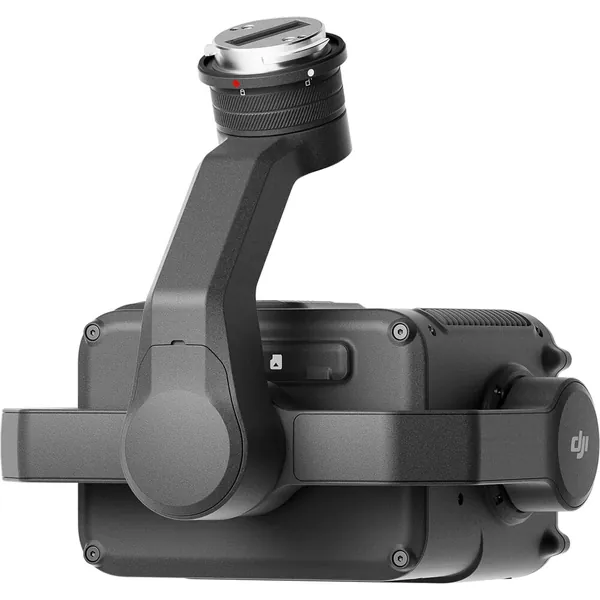

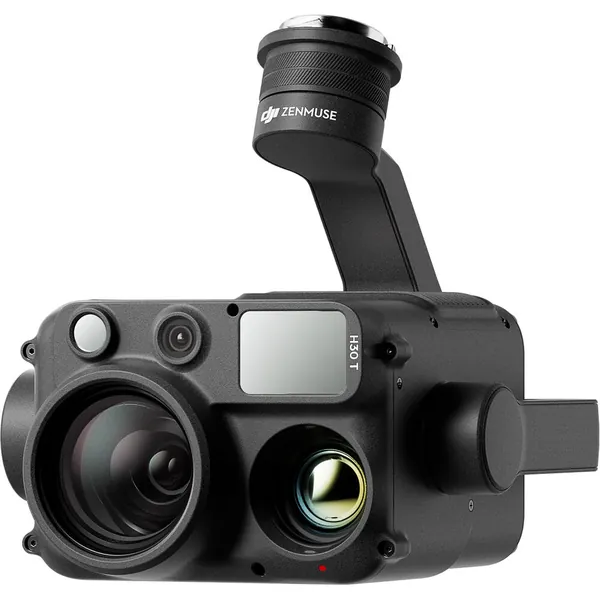

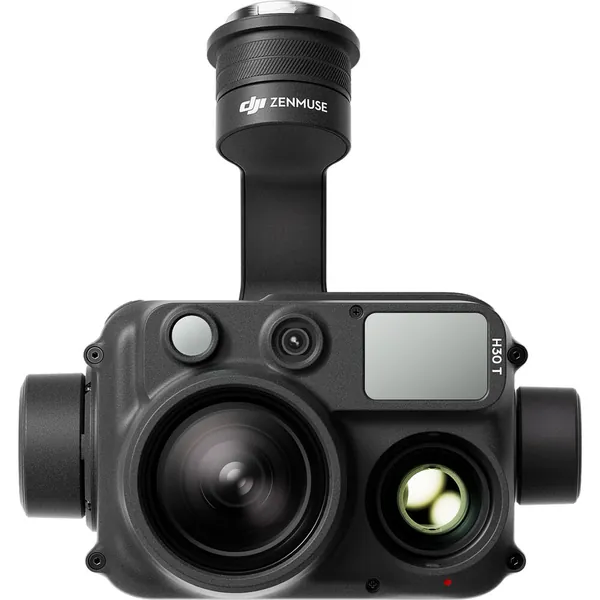

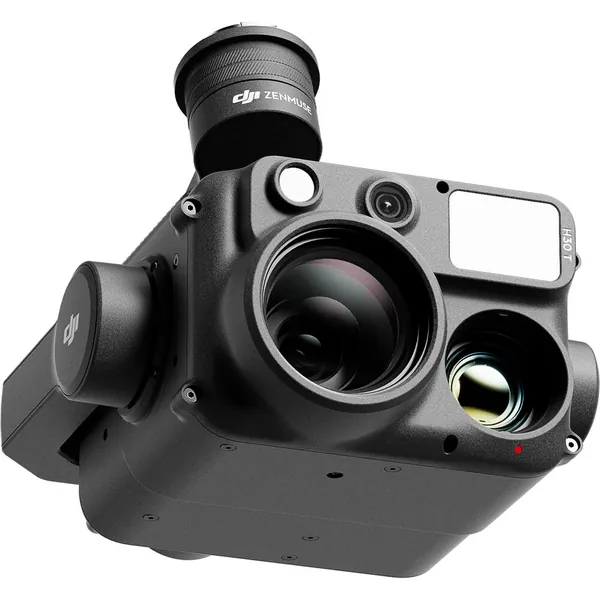

DJI Zenmuse H30T – Advanced Thermal & Optical Payload for Mission-Critical Operations

Elevate your aerial intelligence with the DJI Zenmuse H30T, a next-generation hybrid sensor payload engineered for public safety, industrial inspection, and search-and-rescue missions. Combining a high-resolution 4K visible camera, a powerful 1280×1024 thermal imager, a laser rangefinder, and an NIR auxiliary light, the H30T delivers unmatched situational awareness in the most challenging environments—day or night.

Key Features

• Dual-Sensor Fusion: 4K 1/1.3" CMOS visible camera (up to 32× digital zoom) + 1280×1024 thermal imager (up to 30× digital zoom) with 640×512 native resolution for crisp thermal detail.
• Laser Rangefinder: Integrated 1.2 km (0.75 mi) laser rangefinder enables precise distance measurement and geo-tagging of targets.
• NIR Auxiliary Light: Near-infrared illuminator (850 nm) for covert night operations without alerting subjects.
• Smart Tracking & AI Modes: Automated subject tracking, temperature alarm, and fire-point detection for rapid response.
• Industrial-Grade Stabilization: 3-axis gimbal with ±0.01° accuracy ensures shake-free footage even in high winds.
• IP54 Weather Resistance: Dust and splash-proof design for reliable performance in rain, snow, or dusty environments.
• Extended Thermal Range: -20°C to +550°C (high-gain) and up to +1000°C (low-gain) for firefighting or electrical inspections.

Technical Specifications

• Visible Camera: 1/1.3" CMOS, 4K (3840×2160) at 30 fps, FOV: 61° (wide) / 4.5° (tele), aperture f/2.8
• Thermal Imager: Uncooled VOx microbolometer, 1280×1024 (super-resolution), 640×512 native, spectral band 8–14 µm, sensitivity <50 mK
• Laser Rangefinder: Class 1 laser, wavelength 905 nm, accuracy ±(0.2 m + 0.15% × D), range 0–1,200 m
• Zoom: Visible: 4× optical + 8× digital (32× total); Thermal: 2× optical + 15× digital (30× total)
• Gimbal: 3-axis (pitch, roll, yaw), angular vibration range ±0.01°, controllable pitch range -90° to +30°
• Storage: Supports microSD (up to 256 GB), USB-C for data transfer
• Weight: Approx. 960 g (2.1 lb) including gimbal
• Power Consumption: 18–27 W (typical), powered via DJI SkyPort v2
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Compatibility: DJI Matrice 350 RTK, Matrice 300 RTK (via firmware update)

Benefits

• Enhanced Situational Awareness: Fusion of visible and thermal imagery allows teams to identify heat signatures, structural anomalies, or missing persons in total darkness or smoke.
• Faster Decision-Making: Real-time laser rangefinder data and AI-driven alerts (e.g., temperature thresholds) reduce response time during emergencies.
• Covert Operations: NIR illuminator enables silent, non-visible surveillance for law enforcement or wildlife monitoring without disturbing the environment.
• All-Weather Reliability: IP54 rating and wide temperature tolerance ensure consistent performance in rain, fog, or extreme cold—critical for industrial inspections in harsh climates.
• Cost-Effective Versatility: One payload replaces multiple sensors, eliminating the need to swap cameras mid-mission and reducing equipment costs.
• Seamless Integration: Plug-and-play compatibility with DJI’s enterprise drone ecosystem ensures quick setup and familiar control via DJI Pilot 2 app.
